Teensy Header Kit

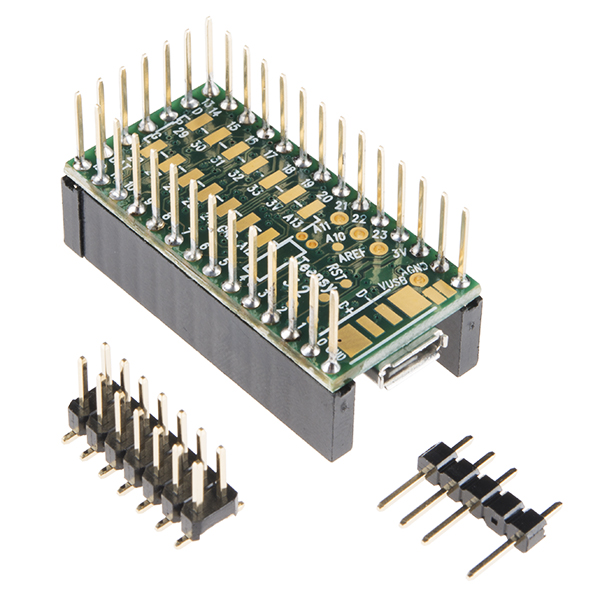

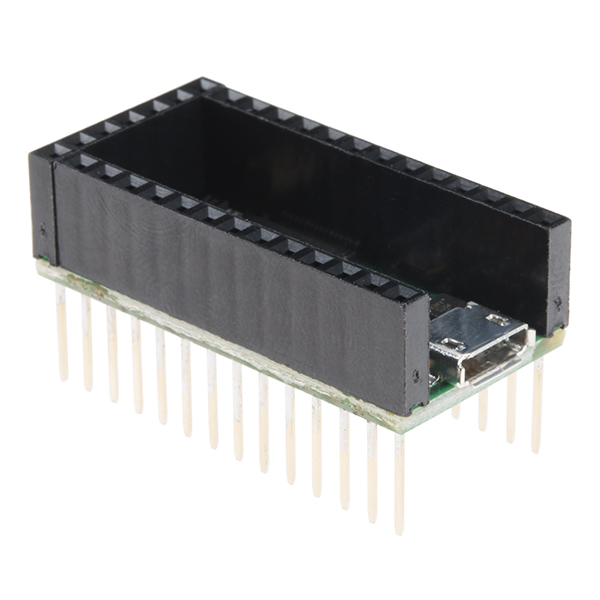

Description: These headers are made to work with the Teensy 3.2 and Teensy LC development boards. Each kit of headers makes your Teensy breadboard compatible and will allow for stacking a Teensy and Teensy-compatible shield board. This kit includes five headers (two 13-pin, one 7-pin, one 3-pin, and one 2x7 right-angle SMT), enough to connect your chosen Teensy in any configuration you need!

Note: This Header Kit can also be used for the Teensy 3.0 and 3.1, as the pin layout has not changed between the three versions.

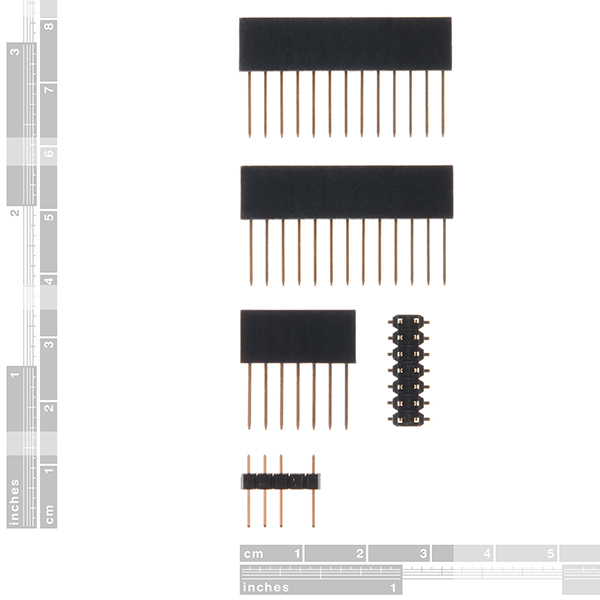

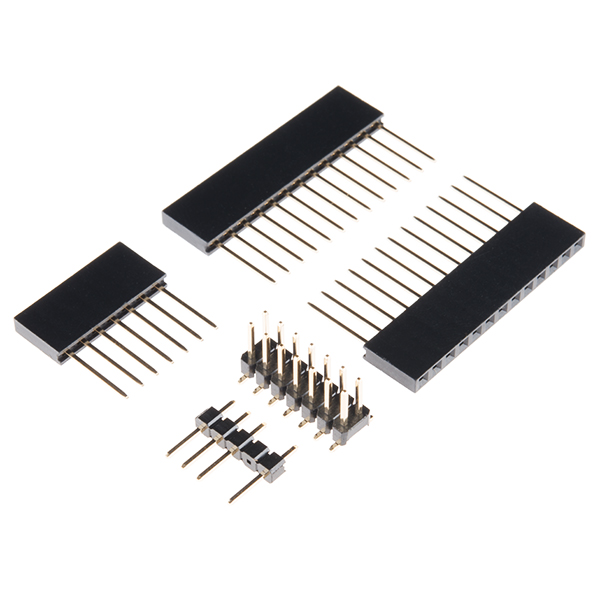

Includes:

• 2x 13-pin stackable header
• 1x 7-pin female header (for pins on end)
• 1x 3-pin header (for 3-off grid holes)
• 1x 2x7 right-angle SMT header, for the surface mount pads on the back of the Teensy 3.2
