Teensy Arduino Shield Dönüştürücü

Teensy geliştirme kartınızı Arduino form faktörüne dönüştürerek Shield'lar bağlamak için bu kartı kullanabilirsiniz.

Arduino R3 tasarımına sahip bu kartta ek olarak Real-Time Clock (RTC) devresi için saat pili, JST batarya konektörü, 4-12V gerilimler ile kullanabilmeniz için barrel jack ve ICSP header bağlantısı yer alır.

Teensy LC tasarımı baz alınarak geliştirilmiş bir kart olmasına karşın Teensy 3.1'in tüm fonksiyonlarını kullanabilmenize olanak tanır.

Not: Kart kit olarak gelmektedir, yani header'lar lehimli değildir.

Özellikler:

• Arduino R3 pin dizilimi
• RTC için batarya konektörü
• Barrel jack güç girişi
• I2C bağlantı jumper'ları
• ICSP header'ları
• DAC pin header'ları

• Devre Şeması
• Eagle Dosyaları
• Bağlantı Rehberi
• GitHub

--------------------------------------------------------

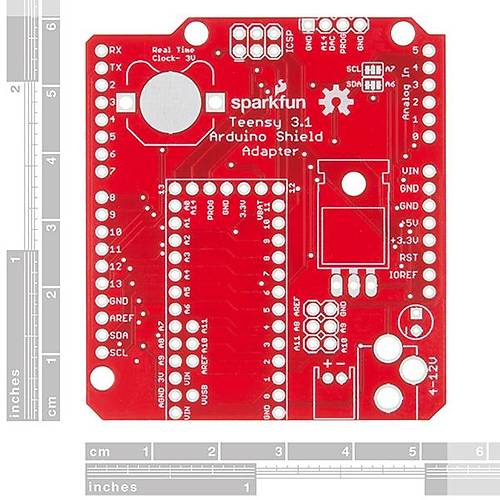

Description: The Teensy is an amazing and compact development platform in a breadboard friendly form factor, but what if you could incorporate it into the Arduino architecture? The Teensy Arduino Shield Adapter allows you to attach your Teensy and utilize your favorite Arduino shields without the requirement of a breadboard or any complicated wiring. Needless to say, the Teensy Arduino Shield Adapter is a useful tool for upgrading all of your existing Arduino projects to a more powerful controller!

As we stated before, the Teensy Arduino Shield Adapter provides basic Arduino compatibility with your run-of-the-mill shield but there are a few other fun features that we?ve added on, as well. These features include a Real Time Clock (RTC) battery, a JST battery connector, a 4-12V barrel jack connector, an ICSP header, and more. Because this board is simply an adapter, there is no special programming required to start working with the adapter. You will, however, need to program the Teensy for any Arduino shield you?d like to work with.

While the adapter design can fit the Teensy LC footprint, it has been designed to fully utilize the features of the Teensy 3.1. Not all of the features available on the adapter are compatible with the LC so please be sure to check the Hookup Guide in the Documents section below to ensure functionality for your project. Please keep in mind that this adapter may be incompatible with some 5V Arduino shields. Please check our hookup guide for more information.

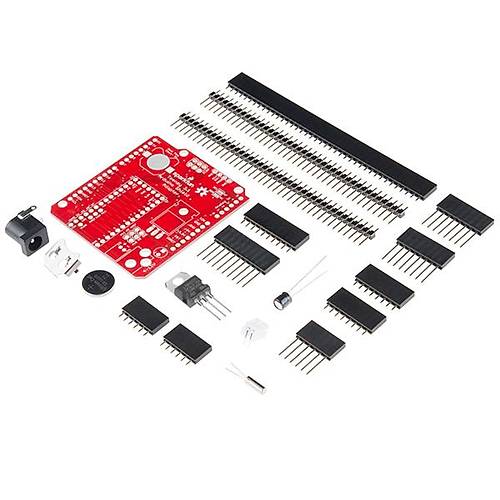

Note: The Teensy Arduino Shield Adapter comes as a kit and will need to be soldered together.



Features:

• Arduino R3 Interface
• Real Time Clock Battery
• JST Battery Connector
• Barrel Jack
• I2C Jumpers
• ICSP Header
• DAC Pin Header
