Özet: Intel Edison kartınız ile DC motor sürmeye ihtiyaç duyduğunuz projelerinizde kullanabileceğiniz 2 kanal H-köprüsü modülüdür. 2,7-15V arasında gerilimler ile çalışan DC motorlarınızı 1 ampere kadar akımda ileri veya geri yönde sürebilmenizi sağlar. Motor sürücü, Edison kartından bir lojik seviye dönüştürücü ile izole edilmiştir, bu sayede sinyallerde parazit oluşması engellenmiştir. Harici güç girişi için VIN ve GND bağlantılarını kullanabilirsiniz.
Açıklama: Intel® Edison gömülü elektroniğe bakışınızı değiştirecek. Bu ultra küçük platform boyutuna rağmen single-board computer'ın sahip olduğu özellikleri sunabilmekte. İçerisinde Intel® Atom? SoC dual-core CPU, dahili WiFi, Bluetooth LE barındıran Edison, 70 pinli konnektörü ile üst üste yığınlar oluşturacak şekilde diğer kartlara bağlanabilir. Bu kartın elektronik dünyasına girişinizi kolaylaştıracağına hiç şüpheniz olmasın.

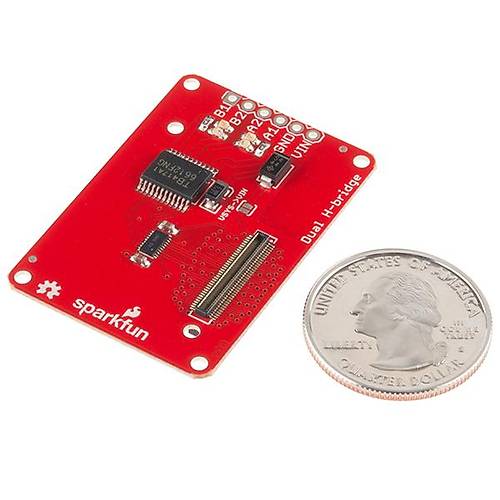

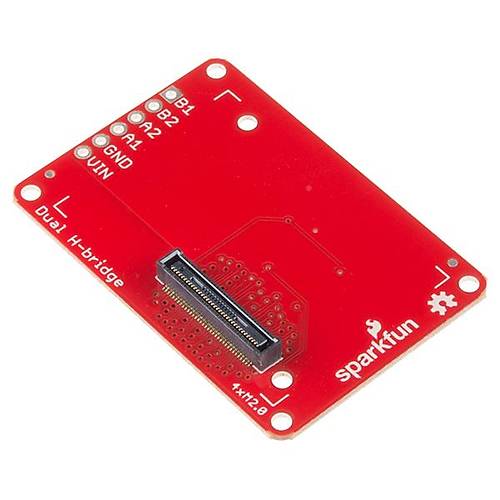

Çift H-Köprüsü Kartı ile Edison'unuza iki adet DC motor sürme imkanı sağlayabilirsiniz. Bu kart, iki adet motoru 2.7V-15V arası besleme voltajı ve 1 ampere kadar besleme akımı ile sürebilir. Bu kart Edison'dan logic seviye dönüştürücü kullanılarak izole edilmiştir. Bu kartı kullanmak için harici bir güç beslemesi yapmanız gerekmektedir. Motorlara için gereken güç "VIN" ve "GND" yazan pinlerden sağlanmaktadır.
Description: The Intel® Edison is an ultra small computing platform that will change the way you look at embedded electronics. Each Edison is packed with a huge amount of tech goodies into a tiny package while still providing the same robust strength of your go-to single board computer. Powered by the Intel® Atom? SoC dual-core CPU and including an integrated WiFi, Bluetooth LE, and a 70-pin connector to attach a veritable slew of shield-like ?Blocks? which can be stacked on top of each other. It?s no wonder how this little guy is lowering the barrier of entry on the world of electronics!
The Dual H-bridge Block gives the Edison some ability to move when paired with two DC motors. This board can drive two DC motors at voltages ranging from 2.7V-15V and currents up to 1amp. This board is isolated from the Edison using a logic level converter. To use this board external power for the motors will be required. Power for the motors is supplied on the headers labled ?VIN? and ?GND?.
If you are looking to add a little more stability to your Intel® Edison stack, check out this Hardware Pack. It will provide you with increased mechanical strength for stacking Blocks on your Edison!
