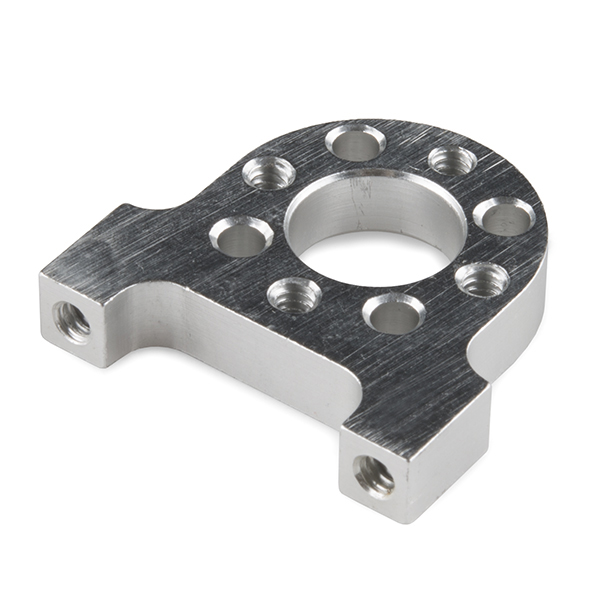

Actobotics Hub Mount C - 90 Degree

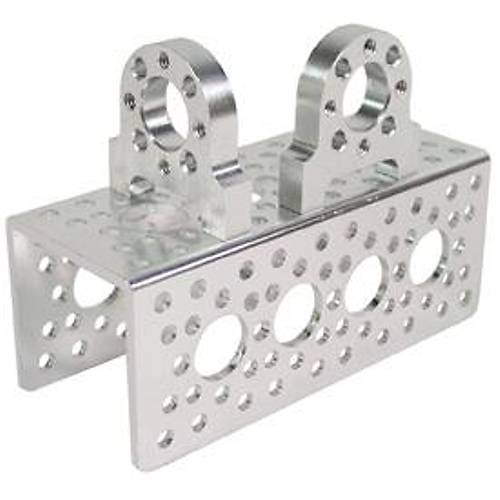

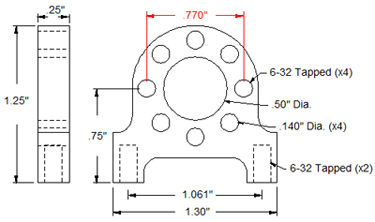

Description: These hub mounts mate directly to Actobotics channels in multiple positions and are useful as attachment points for shafts and tubes with a 0.5" diameter and other hub mountable items. The model C type offers a wider base than the model B. Each hub mount has a 0.5" bore, a width of 1.3", and utilizes the 0.77" hub pattern.


Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.









Actobotics Hole Pattern Details
