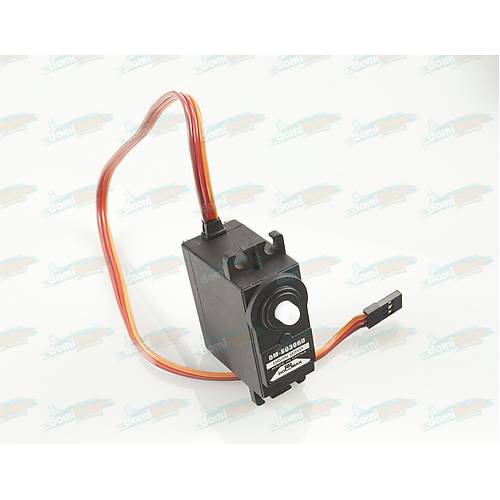

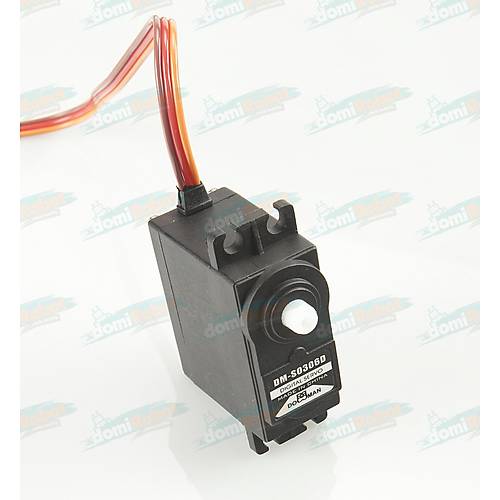

Sürekli Dönebilen (360 Derece) Digital Servo Motor 3kg (DM-S0306D)

Bu ürün 360 derece sürekli dönebilen servo motordur.


> 4.8v-6v

> 4.8v 0.13 sec 60derece

> 4.8v 3kg/cm

> 6v 3.5kg/cm

> 45gr

--------------------------------------------------------------------------------------------------------------------------------------------------

Features

High presicion plastic gears;

Select torque motor,could compare with import one;

long  life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.


Specifications
Item No. DM-S0306D
Operating Voltage: 4.8V~6V
Speed: 0.13 sec/60deg (4.8v)    0.11sec/60deg (6v)
Torque: 3kg.cm (4.8v)          3.5kg.cm (6v)
Size: 40mmX20mmX38.5mm
Weight: 40gram
Motor: 3 pole Core motor
Gear Train: plastic(POM gear)
Ball Bearing: 2BB
Dead band width: 4usc
Interface: (JR)
Wire length: 30cm
Type: Digital,2BB,

Rotation angle:360degree continuous rotation(PWM500-2500us)( PWM 1500US,servo stop,other PWM servo turn continiuously,when 1000 -1500us,the far to 1500us,servo turn faster,when 1500us -2000us,the far from 1500us,servo turn faster )



Important Notes
*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

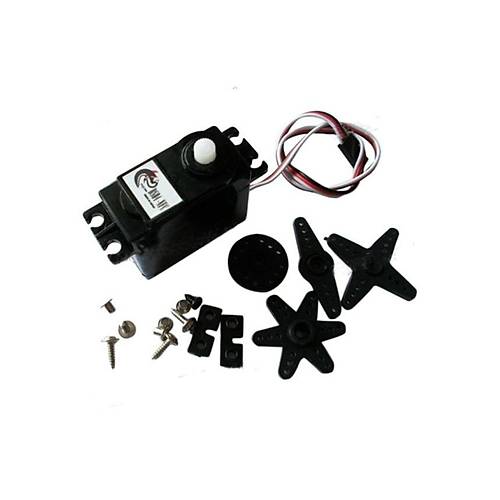

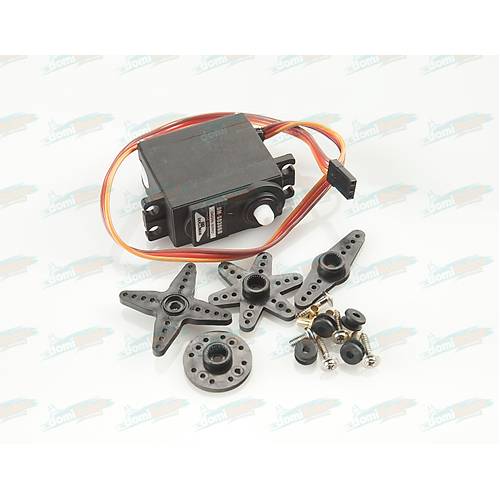

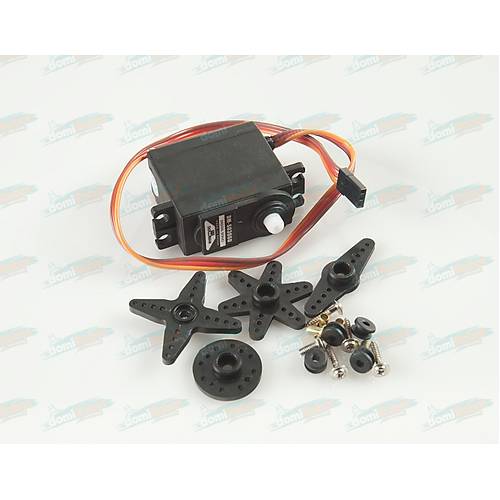

Packing include
1pcsXDM-S0306D  servo

Accessaries:servo horns,rubber grommets, eyelets and mounting screws
1 x double sided servo horn
1 x 4-arm servo horn
1 x 6-arm servo horn
1 x round servo disc
4 x rubber grommets with brass inserts
4 x mounting screws
1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive

Gross Weight: 45 g
