Descripton:
Dc motors are the most commonly used motors in Makeblock Platform. With Makeblock DC Motor-25 Brackets, they may be easy to connet to Makeblock structural components.
Specification:
Voltage: 6V
Gear Ratio: 1:20
Gear BOX Length "L": 19mm
No Load Speed: 325±10%rpm
No Load Current: <=250mA
Load Torque: 0.5±Kg.cm
Load Speed: 230±10%rpm
Load Current: <=850mA

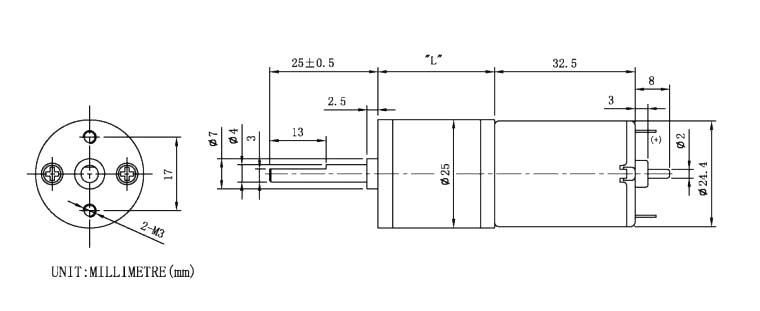

Size Chart (mm) :

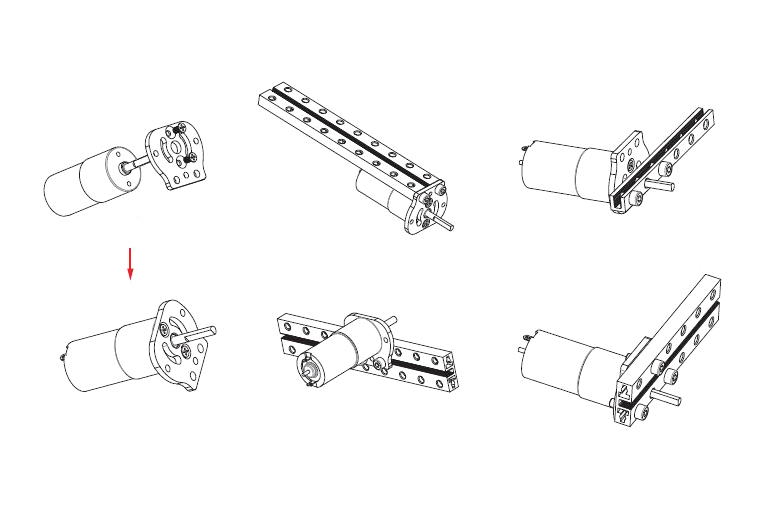

Demo:
The types of Makeblock 25mm DC Motors are as follow:
| Model |
Voltage(V)
|
Gear Ratio |
Gear BOX L(mm)
|
No Load |
Load |
| Speed(rpm) |
Current(mA) |
Torque(Kg.cm) |
Speed(rpm) |
Current(Ma) |
| DC Motor-25 6V/650RPM |
6.0 |
1 : 10 |
19.0 |
650±10% |
<=250 |
0.3± |
450±10% |
<=850 |
| DC Motor-25 6V/325RPM |
6.0 |
1 : 20 |
19.0 |
325±10% |
<=250 |
0.5± |
230±10% |
<=850 |
| DC Motor-25 6V/1:46 |
6.0 |
1 : 34 |
21.0 |
185±10% |
<=250 |
1.5± |
135±10% |
<=700 |
| DC Motor-25 6V/86RPM |
6.0 |
1 : 75 |
23.0 |
86±10% |
<=250 |
2.0± |
60±10% |
<=700 |
| DC Motor-25 6V/30RPM |
6.0 |
1 : 217 |
25.0 |
30±10% |
<=200 |
5.0± |
20±10% |
<=650 |
| DC Motor-25 6V/14RPM |
6.0 |
1 : 478 |
27.0 |
14±10% |
<=200 |
8.0± |
10±10% |
<=650
|
