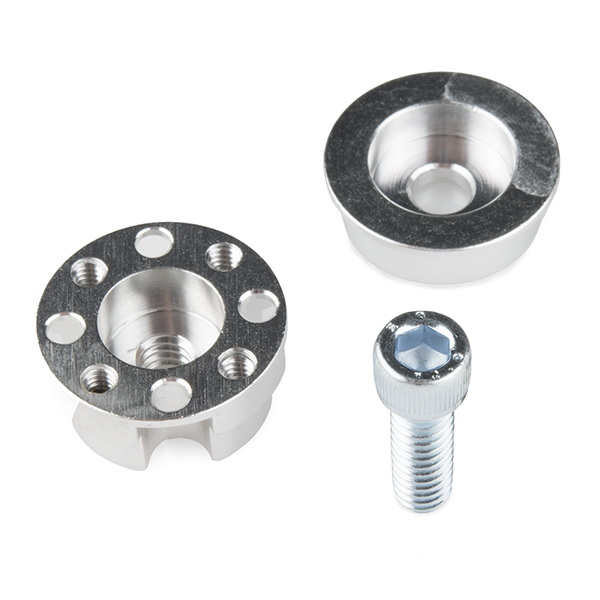

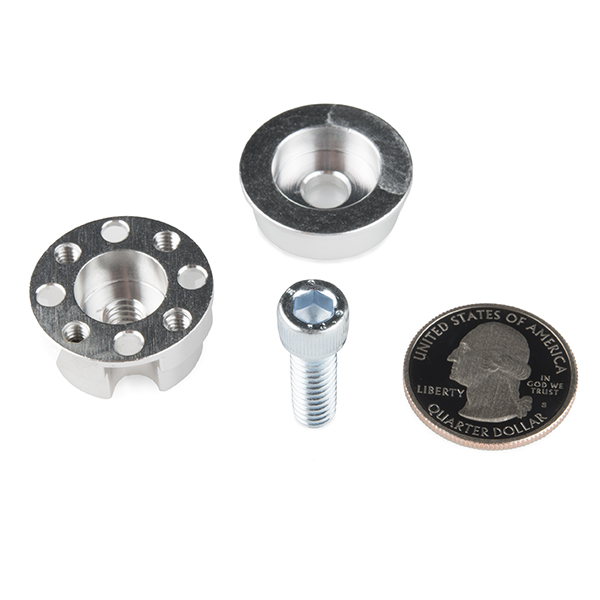

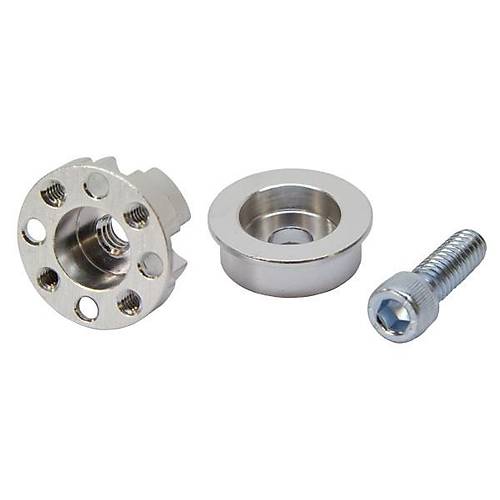

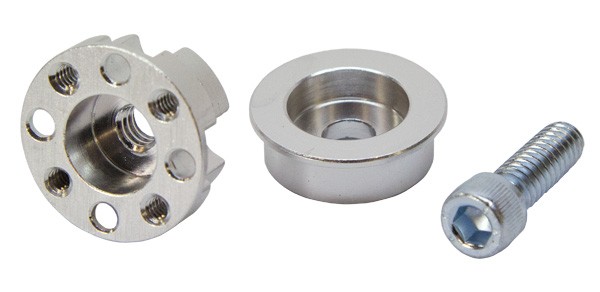

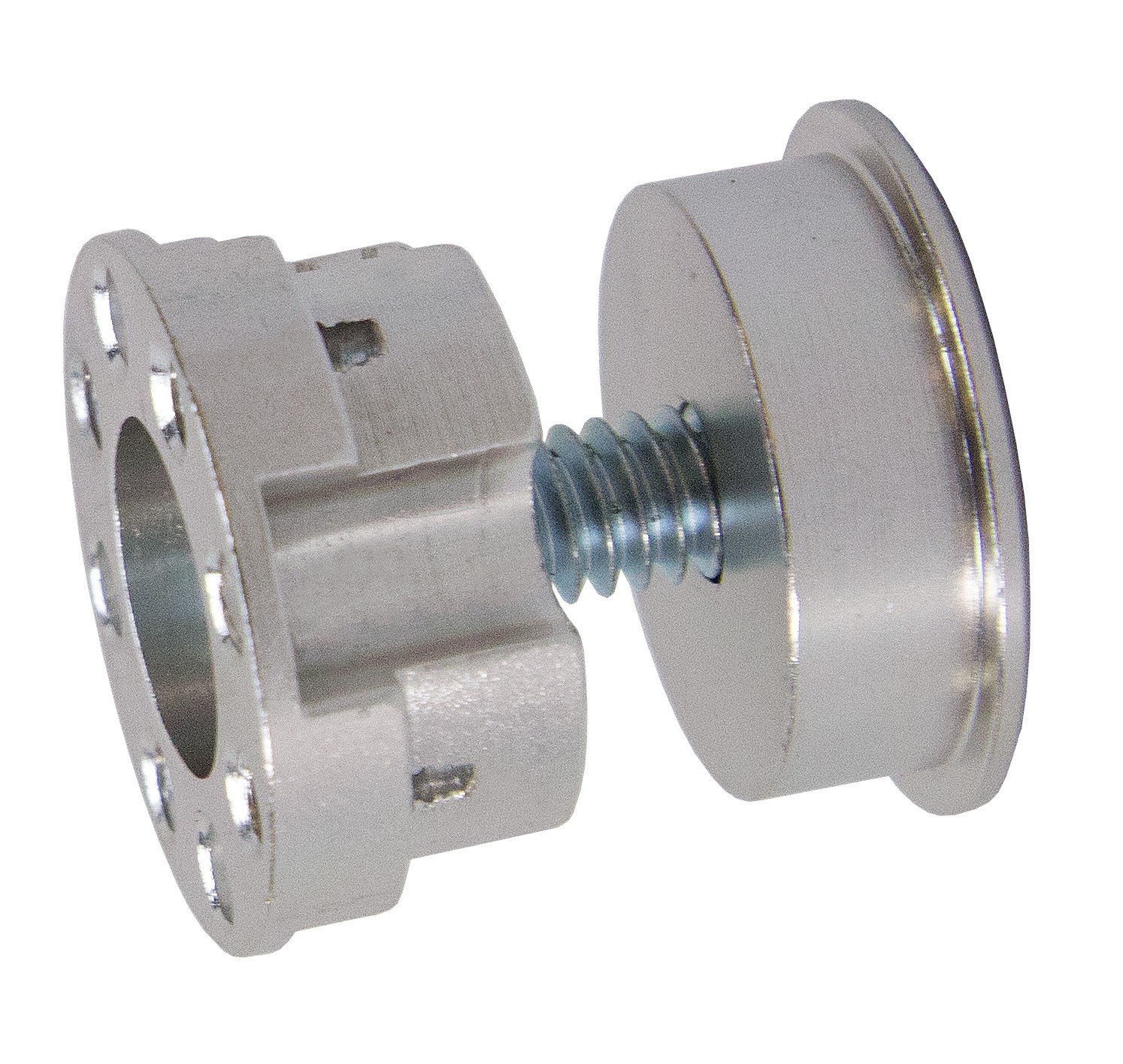

Actobotics Skate Wheel Adapter - Hub Connection

Description: These skate wheel adapters have a diameter of 1?, a width of 0.32?, and utilize the 0.77? hub pattern. These adapters allow you to attach the 2.975? or 4.90? skate wheels to almost any gear, pulley, or sprocket by connecting to any part utilizing the 0.77? hub pattern.


Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

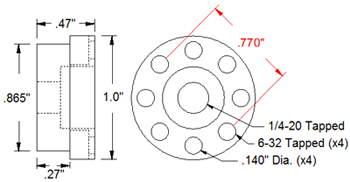

Dimensions:

• OD -1?
• Width - 0.32?
• Hub Pattern - 0.77?




Actobotics Hole Pattern Details
