Actobotics Wheel Adapter - Hex (17mm, Pair)

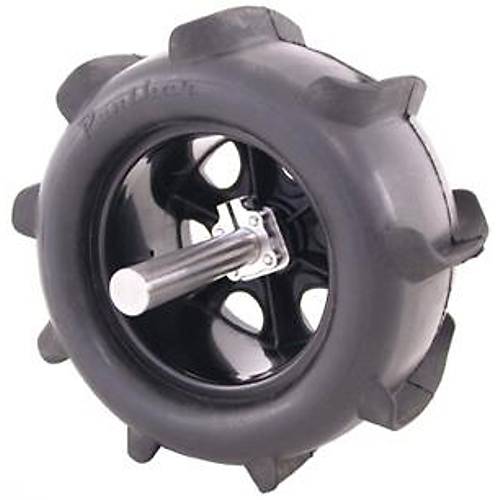

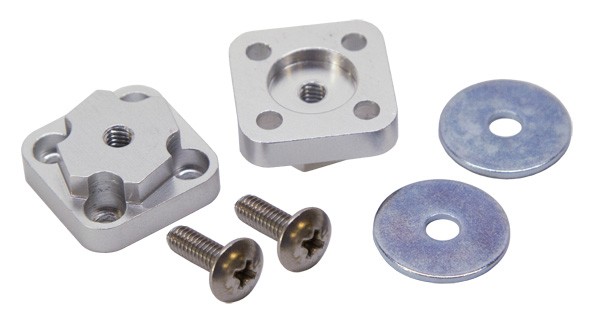

Description: These wheel adaptors allow you to adapt 17mm hex drive wheels to our .770” hub pattern. The recessed .770” pattern allows you to run 6-32 socket head screws into any .770” hub or component that utilizes the .770” hub pattern. Each kit consists of two 2 aluminum mounts, 2 #8 washers, and 2 8-32 x 1/2” truss head screws.


Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

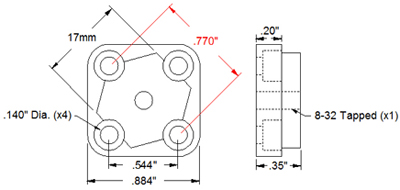

Actobotics Hole Pattern Details
