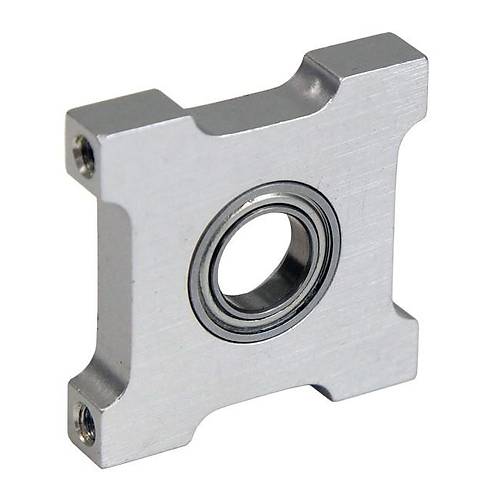

Actobotics Bearing Mount - Quad Block (3/8 inc; Bore)

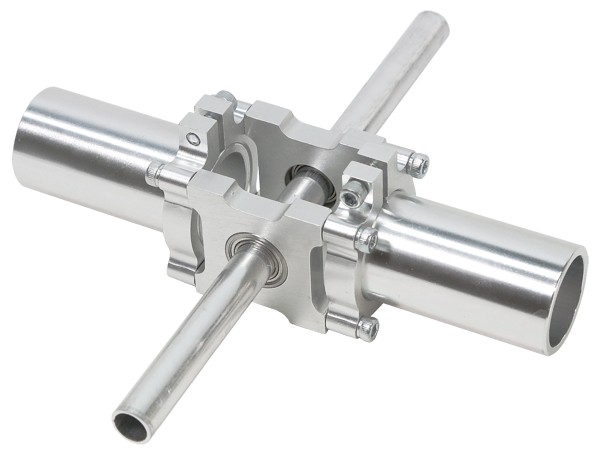

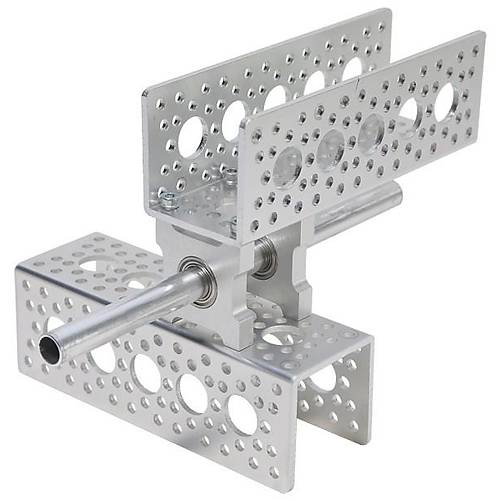

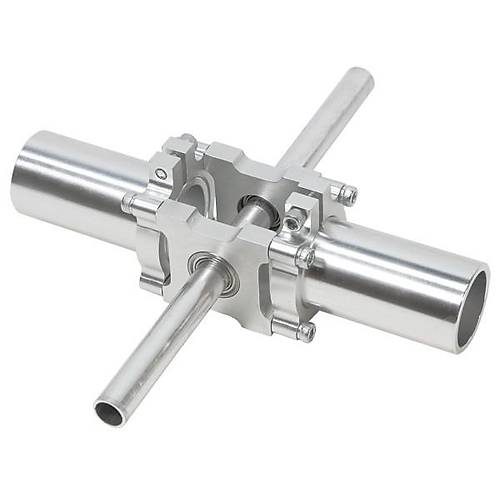

Description: Quad block bearing mounts attach to the inside of a channel and have a ball bearing with a 3/8” bore for shafts. These bearing mounts have a width of 1.32”, a thickness of 0.25”, a 0.375” bore bearing, and utilize the 0.77” hub pattern.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

Dimensions:

• Width - 1.32”
• Thickness - 0.25”
• Bore Bearing - 0.375”
• Hub Pattern - 0.77”

Product Weight	0.48 oz
Material	Aluminum
Bearing ID	0.375"
Bearing Material	52100 Chrome Steel
Static Load	92 lbs
Dynamic Load	187 lbs
Max RPM	30,000



Actobotics Hole Pattern Details
