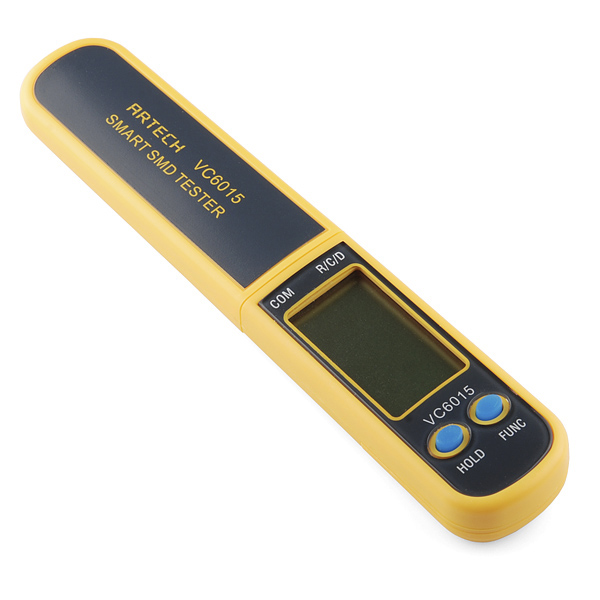

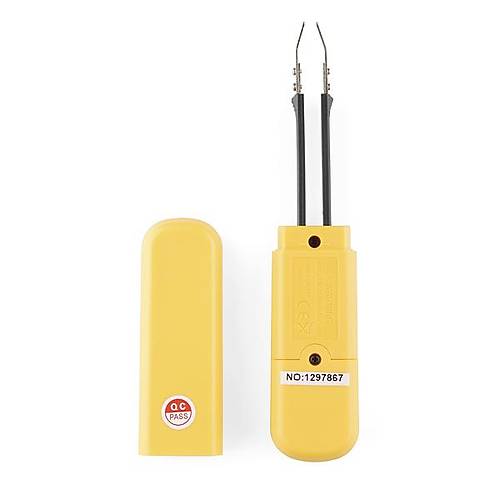

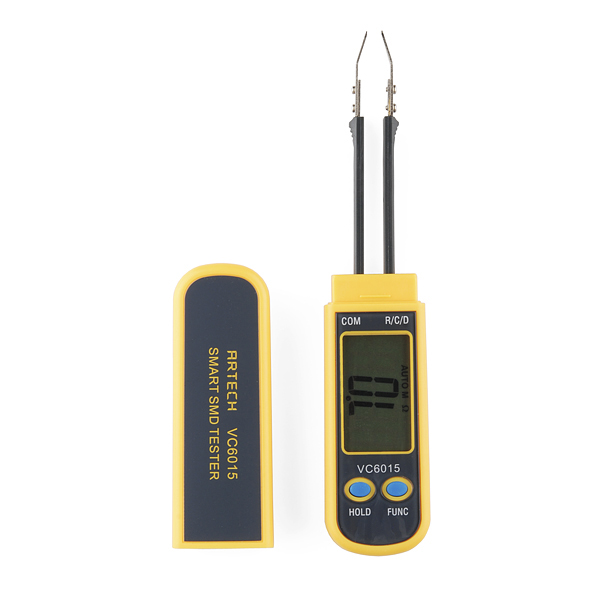

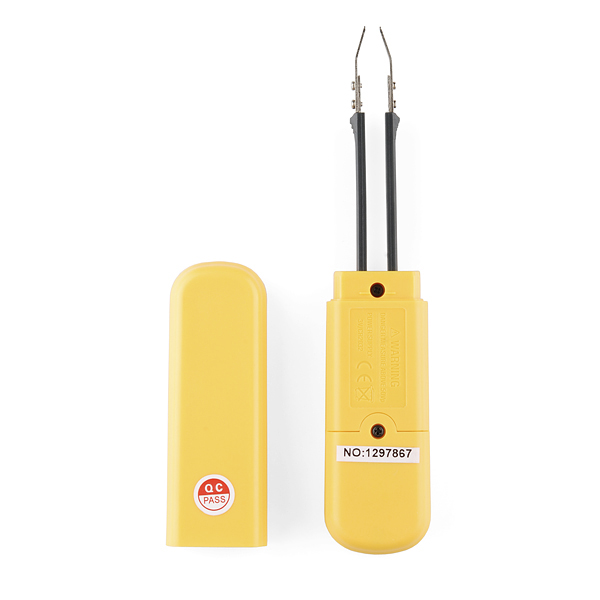

SparkFun Smart SMD Tester

Description: This smart SMD tester is essentially a pair of multimeter tweezers. This allows you to troubleshoot circuits with small SMD parts without having to fumble with large probes or long wires. Test resistors, capacitors and diodes one-handed!

Features:


• Resistance Range: 300?/3K?/30K?/300K? ±(1.0%+5) 3M/30M? ±(2%+5)
• Capacitance Range: 3n/30n/300n/3µ/30µ/300µF ±(3%+5) 3000µ/30000µF ±(5%+5)
• Powered by One CR2032 Button Cell Battery
• Unit Symbol Display
• Weighs only 68g
• Auto Range
• Auto Scan
