SmartPower2 with 15A /4A

SmartPower2 is a power-supply which has WiFi connectivity to control the voltage and switch on/off a connected device. You can also monitor the load current and power consumption remotely on your smartphone, tablet and PC.


Full guide, schematics, PCB layout file and detail information are available on our WiKi :
http://odroid.com/dokuwiki/doku.php?id=en:acc:smartpower2




PACKAGE INCLUDES   A. SmartPower board B. Acrylic piece (short circuit protection  against conductive surfaces) C. 16x2 LCD module D. 1x5mm PCB spacer, 2x3mm screw E. DC plug cable assembly 2.5mm F. DC plug cable assembly 5.5mm G. 15V/4A power supply unit H. Micro USB cable * The 3pin power cord is sold separately

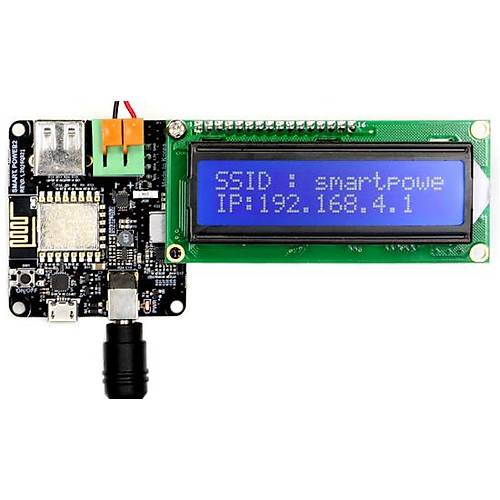

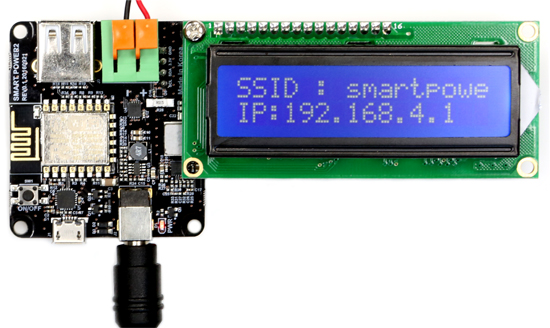

BOARD DETAIL

Ensure the DC plug cable is properly connected to negative(black) and positive(red).  Caution! if you plug it the other way, your board will be seriously damaged.

Control and monitor your device power wirelessly.

SPECIFICATION   WiFi MCU module ESP12E Output Interface USB Host, terminal block(+, -) Terminal Block Output Voltage DC 4 ~ 5.3V in 100mV step Terminal Block Maximum Output Current 5A USB Host Port Output Voltage DC 4 ~ 5.3V in 100mV step USB Host Port Maximum Output Current 1A DC-Jack Input Voltage 9~15V Measurement Voltage, Current, Watt, Watt-Hour Display 16×2 I2C Character LCD (detachable) Wireless WiFi 802.11 b/g/n 2.4GHz  Dimensions 52x46mm Weight 18g, 58g(with LCD)
