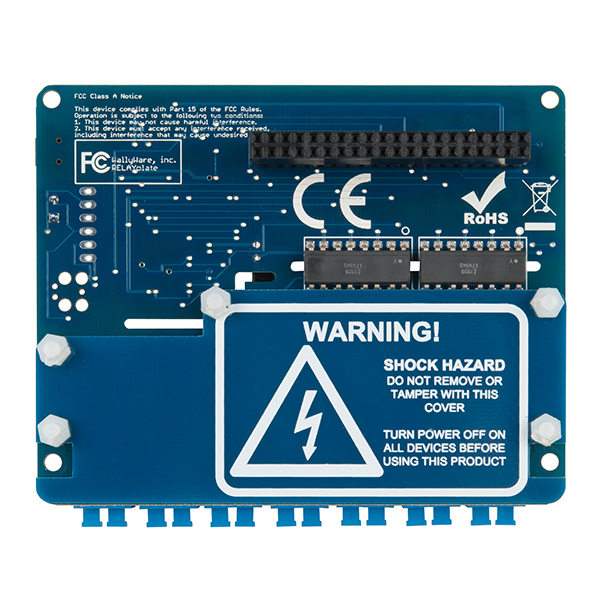

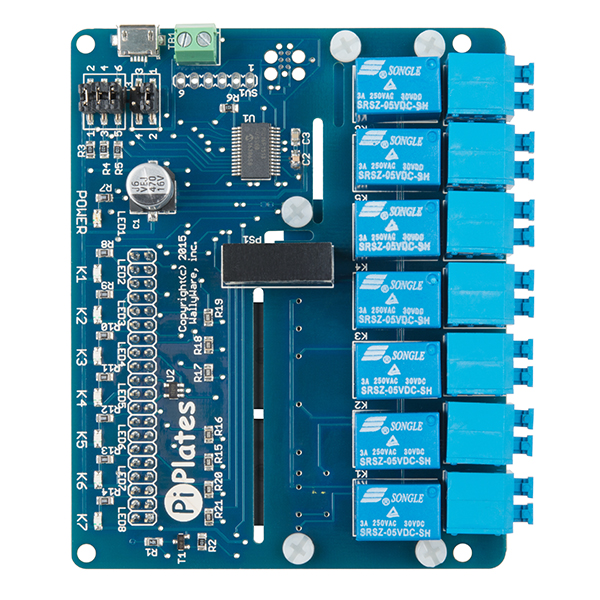

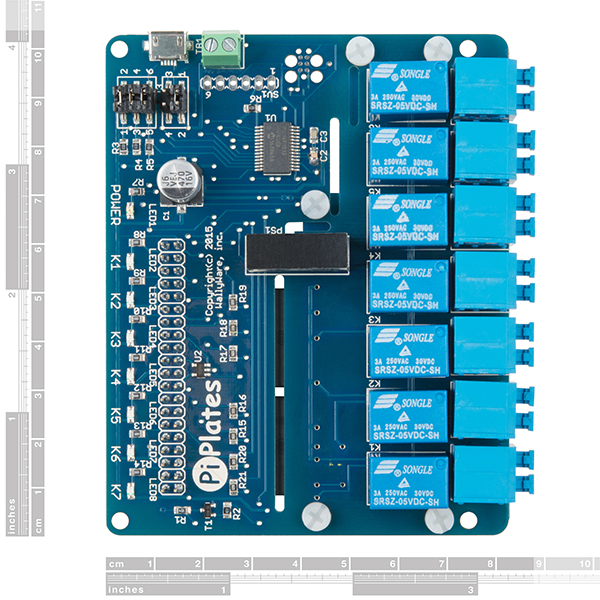

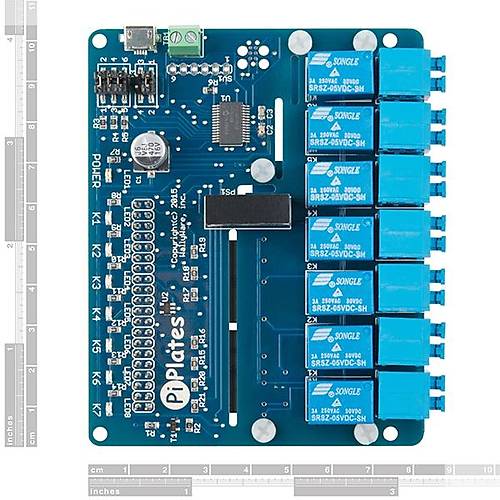

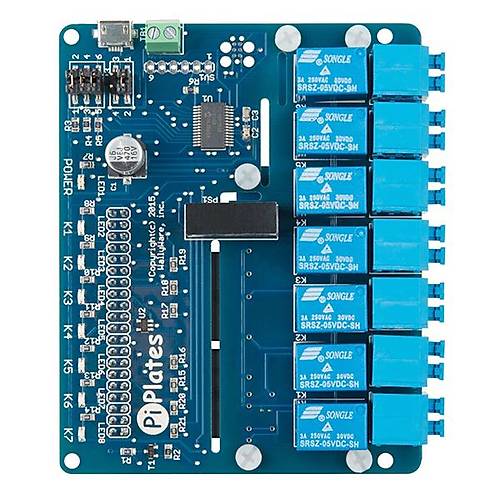

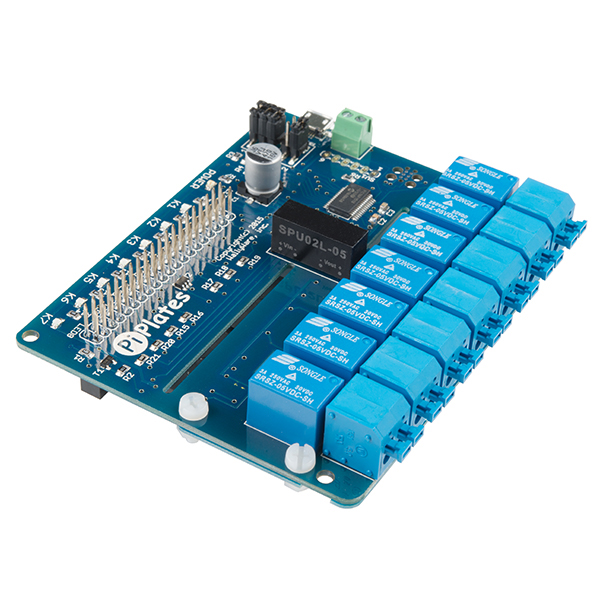

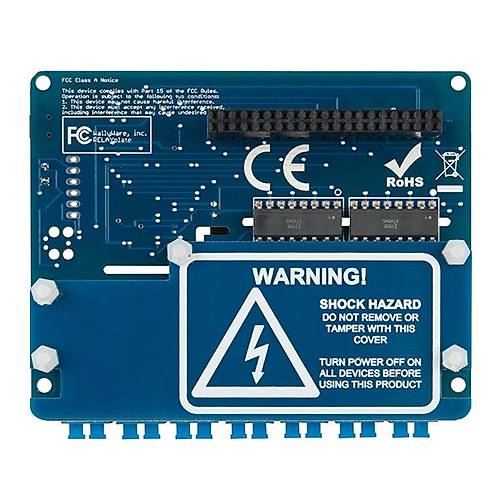

Pi Plates in ürettiği RelayPlate Raspberry Pi için üretilmiş ve 120 VAC yi anahtarlayabilen ve UL 60950 standartlarına uyan ilk röle kartıdır. 7 röleden her biri UL standardında olup 1 amperde 120 VAC veya 30 VDC anahtarlayabilir ve her Pi Plates ürünü gibi üst üste 8 tane koyarak 56 röleye kadar çıkabilir! RelayPlate, DAQCplate ve MOTORplate ile uyumlu olup, istediğiniz proje için gerekli mükemmel devre kartı dizinini oluşturmanıza izin verir.
Pi-Plakalar üst üste eklenebilir ve kendi aralarında değiştirilebilir eklenti devre kartı ailesi olup Raspberry Pi nız ile dış dünya ile bağlantı kurmanızı sağlar. Bütün Pi Plakaları Raspberry Pi üzerinde en az pini kullanıp en iyi özellikleri size sunmak için tasarlanmıştır. Pi Plakaları mekanik ve elektriksel olarak bütün 40 pinli Raspberry Pi versiyonları ile (Pi 3 Model B ve Pi Zero dahil ) uyumlu ve amatör, deneysel çalışanlar ve profesyollerin ihtiyaçlarını karşılamak için tasarlanmıştır.
ÖZELLİKLER
7 tek kutuplu, 1 atmalı role
120 V AC veya 30 V DC
1 ampere kadar akım
Vidasız iç bloklar
8 RelayPlate e kadar üst üste dizilebilir, 56 adet role için!
Bir RelayPlate RaspberryPi dan 5VDC ile çalışır
Yardımcı güç konektörleri RelayPlate leri dizmek için sağlanmıştır
Programlanabilir Led içerir
7 adet LED gösterge görsel olarak röle durumunu gösterir
UL 60950 güvenlik standdartlarına uygun olarak üretilmiştir
The RELAYplate from Pi-Plates is the first dedicated relay board for the Raspberry Pi designed to meet the safety requirements of UL 60950 while being capable of switching 120 volts AC. Each of the seven relays is UL rated to switch 1 amp at 120volts AC or 30 volts DC. And, like all Pi-Plates, you can stack these boards to increase your relay count to 56 using eight plates. The RELAYplate board is compatible with the DAQCplate and MOTORplate, allowing you to create the perfect stack of boards to control your project.
Pi-Plates are a family of stackable and interchangeable add-on circuit boards that allow you to interact with the outside world using your Raspberry Pi. Every Pi-Plate is designed to provide a robust set of features at minimal cost while using the fewest pins possible on the RPi header. Pi-Plates are mechanically and electrically compatible with all revisions of the Raspberry Pi with 40 pin headers (including the Pi 3 Model B and Pi Zero) and are designed to satisfy the needs of hobbyists, experimenters and professionals.
FEATURES
Seven single-pole, single-throw relays
Rated at 120 volts AC or 30 volts DC
Currents up to 1 amp
Convenient screwless terminal blocks
Up to eight RELAYplates can be stacked together, providing 56 relays
A single RELAYplate will run from the Raspberry Pi 5VDC supply
Auxiliary power connectors provided for stacking multiple RELAYplates
Includes programmable LED
Seven LED annunciators provide visual relay status
Designed to meet the stringent safety requirements of UL standard 60950
