DFRobot Brushless DC Fan (Anakart İçin)

INTRODUCTION

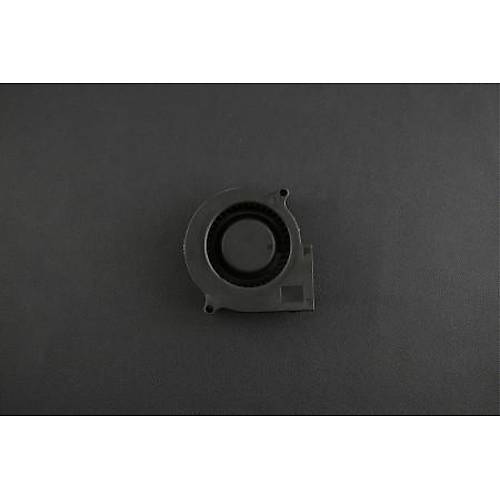

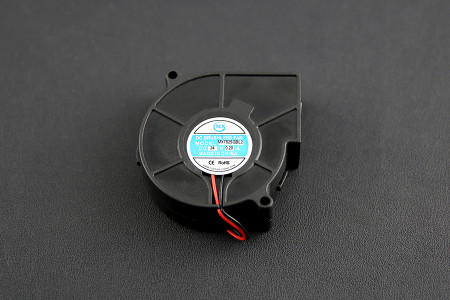

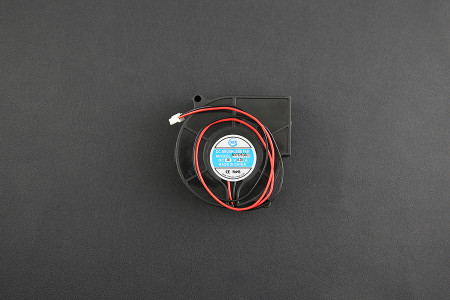

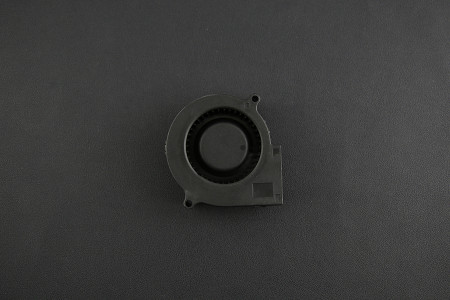

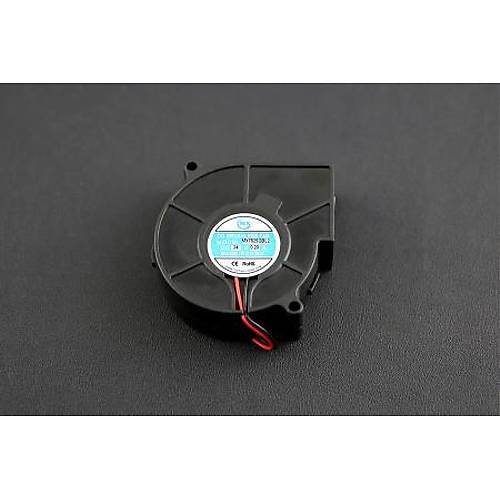

The 7525 Turbo Fan is a noiseless high performance cooling fan. It is widely used in cooling system, like PC and 3D printer. The  average operation time could arrive 40000 hours, which has met the vast majority of application scenarios.


SPECIFICATION

• Part No.: BD247530MB-NBE
• Outline Dimension: 75x75x30 mm/2.95x2.95x1.18 inches
• Rated Voltage: 24 V
• Operating Voltage: 12 ~ 24 V
• Starting voltage: 12 V
• Rated Current: 0.11 A
• Rated Power Consumption: 2.64 W
• Speed: 3000 RPM
• Max Airflow: 12.2 CFM / 0.345 m3/min
• Noise Level: 42 dB

DOCUMENTS

• Product Specification

PACKING LIST

• Overlord Brushless DC Fan for Mainboard x1
