AÇIKLAMALAR

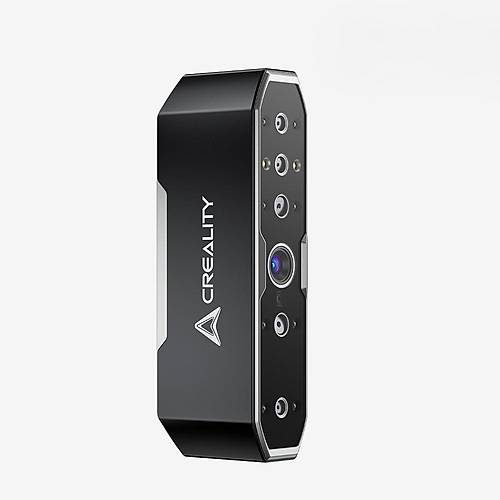

Creality CR-Scan Otter, çok çeşitli uygulamalar için tasarlanmış, taşınabilir ve hassas bir 3D tarayıcıdır. Hem büyük hem de küçük nesneleri rahatlıkla tarayabilirsiniz.
0.02mm ye kadar tarama doğruluğu, her ayrıntının keskin ve net olmasını sağlar. Bu size endüstriyel düzeyde hassas taramanın keyfini çıkaracaktır.
Creality tarayıcılara baktığımızda endüstriyel düzeyde hassasiyete sahip, daha uyumlu ve uygun maliyetli 3D tarayıcıdır.
CR-Scan Otter, küçük madeni paralardan büyük araçlara kadar geniş bir nesne yelpazesini tarayabilen esnek bir tarayıcıdır. Bu tarayıcı, 10x10x10mm'den 2000x2000x2000mm'ye kadar boyutlarda nesneleri tarayabilir. Tarama mesafesi 110mm³ ile 1200mm³ arasında değiştiğinden, çeşitli boyutlardaki nesneleri etkili bir şekilde yakalayabilir. Bu özellikler, onu farklı uygulamalar için çok yönlü bir araç haline getirir.
- Hassasiyet: 0.02mm'ye kadar doğruluk sağlar
- Gelişmiş Görüş: Yenilikçi dört lensli stereo görüşle donatılmıştır
- Kararlılık: Titremeyi önleyen teknoloji, sorunsuz tarama sağlar
- Renk Derinliği: 24bit tam renkli tarama özelliğine sahiptir
- Çok yönlülük: 10mm'den 2000mm'ye kadar olan nesneler için uygundur
- Malzeme Esnekliği: Siyah ve metal nesneleri sprey olmadan tarayabilir.
Various Size Options

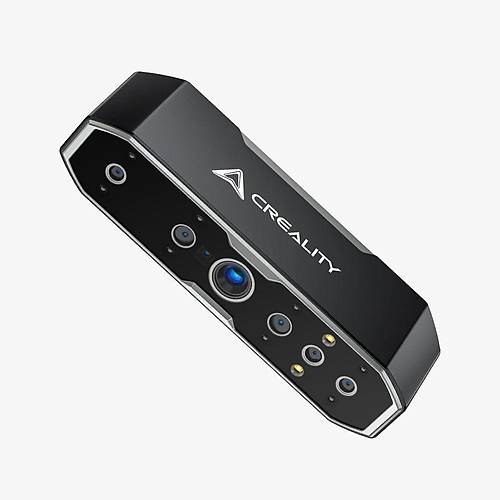

Innovative Four-lens Stereo Vision
Proficient in handling both large and small scans. Two sets of dual lenses, catering to details and various sizes? A set of long-focal dual lenses for scanning small objects, providing richer details; a set of short-focal dual lenses for scanning large objects, covering a wider range of sizes.
Capture SMALL & BIG Objects
The CR-Scan Otter realizes possibilities of scanning various objects, ranging in size from 10*10*10mm to 2000*2000*2000mm, from tiny coins to large vehicles, all covered in one scanner. The scanning distances range from 110mm³ to 1200mm³ to effectively capture items of versatile sizes.
Anti-shake, Smooth and Efficient Scanning
Equipped with One-Shot 3D imaging technology, the CR-Scan Otter is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Ultra-High Precision, Rich in Detail
Otter adopts the state-of-the-art structure-light stereo-matching algorithm and optical design to faithfully reproduce the authentic texture and contours of objects. The scanning precision up to 0.02mm ensures every detail is sharp and clear.
Unique Face & Body Algorithm with Eye Safety
Scan Black/Metal ObjectsWithout Spraying
Even without scanning spray, you can scan cars, car parts, tires, and other black/metal objects to get the desired model effect.
Full-Color Scanning, True-to-Life Reproduction
24-bit Full-Color Scanning
Equipped with a million-pixel full-color RGB camera and an exclusive color mapping algorithm, ensuring exceptional capture of model details and colors.
Outdoor Scanning
Outdoor Scanning Engineered with advanced DOE (Diffractive Optical Element) 3D structure-light technology, CR-Scan Otter has higher environmental adaptability and maintains excellent performance even in sunlight (<30000 lux).
Intuitive Software, Powerful Features
CrealityScan is a professional 3D scanning software with excellent user-friendliness and powerful image and point cloud processing capabilities. With its step-by-step tutorials, one-click model processing, and model editing features, it can easily kickstart your effortless scanning journey.
Özellikler
CR-Scan Otter 3D Scanner
Accuracy: Up to 0.02mm @ 60mm
3D Resolution: 0.05-2mm
Scanning Speed: Up to 20fps
Min. Scan Volume:10mm x 10mm x 10mm
Single Capture Range: Max. 1350x840mm@1000mm
Technology: Infrared structured light
Working Distance: 110mm-1000mm
Color Mapping: YES
Alignment Modes: Geometry/Marker/Texture
Output Format: OBJ/STL/PLY
IMU: YES
Color Supplemental Light: 2 white LEDS
Marker Recognition Enhancement: 8 infrared LEDs
Laser Safety: Class I (eye safe)
System Support: Windows/macOS(*Wireless scanning accessories are required for iPhone iOS/Android)

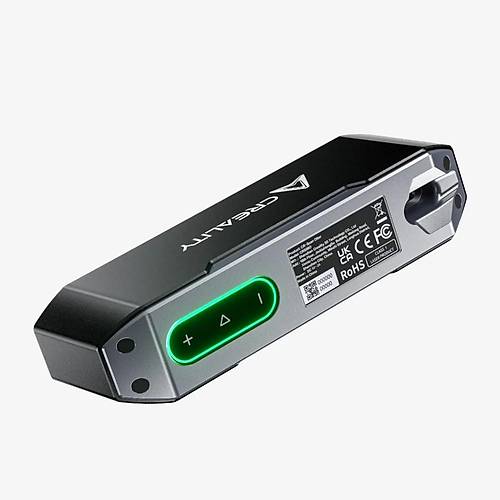

Buttons: Touch
Audible prompt: Yes
Calibration board: Yes
Operating Temperature: -10°C to 40°C
Operating Humidity: 0-90% RH
Input Power: 5V3A
Data Interface: Type C/USB3.0/USB2.0
Device Dimensions: 165mm×37mmx59mm
Device Weight: 390g
