CloudShell 2 Case2 for XU4 - Smoky Blue

CloudShell 2 Case2 for XU4 - Smoky Blue


Akrilik kasa, orijinal CloudShell2'den yeni bir tasarıma sahip
ODROID-XU4 için CloudShell-2 Case2, RAID desteğine sahip uygun fiyatlı bir DIY Ağ Bağlantılı Depolama (NAS) Çözümüdür. Orijinal CloudShell gibi, ön tarafta renkli bir LCD ve IR alıcısı içerir, ancak USB Bağlantılı SCSI (UAS veya UASP) ve kullanışlı veri depolama teknolojileri (RAID-0, RAID-1 ve SPAN) için destek ekler. 3,5 inç HDD/SSD sürücüler için çift yuva sunar. CloudShell-2 ayrıca, UAS'yi destekleyen ve çift 3,5 inç SATA HDD/SDD depolama kurulumuna izin veren bir USB 3.0 - SATA köprüsü (JMicron JMS561) içerir.

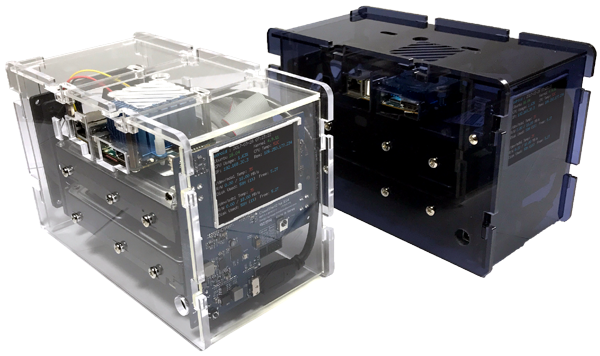

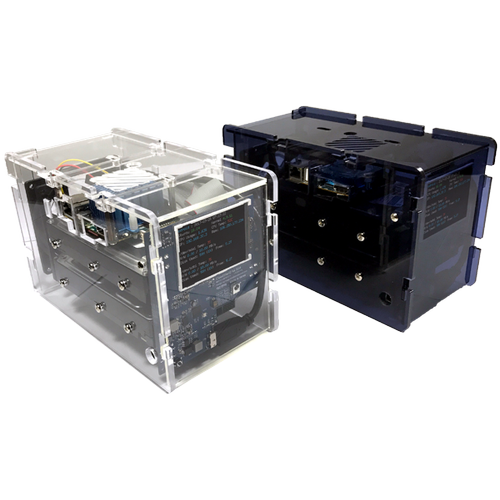

The Acrylic case has new design from the original CloudShell2  The CloudShell-2 Case2 for the ODROID-XU4 is an affordable DIY Network Attached Storage (NAS) Solution with RAID support. Like the original CloudShell, it includes a color LCD and IR receiver on the front, but adds support for USB Attached SCSI (UAS or UASP) and useful data storage technologies (RAID-0, RAID-1 and SPAN). It offers dual slots for 3.5? HDD/SSD drives. The CloudShell-2 also includes a USB 3.0 to SATA bridge (JMicron JMS561), which supports UAS and allows installation of a dual 3.5" SATA HDD/SDD storages.  Further information is available in the WiKi. : https://wiki.odroid.com/accessory/add-on_boards/xu4_cloudshell2/cs2_assembling2

Package include A. Left piece  B. Right piece  C. Top piece  D. Front piece  E. Rear piece  F. Fan_holder piece  G. Top_holder piece  H. Locker piece  I. Fan  J. Current limit fan board  K. USB 3.0 type A-micro B cable  L. 15V/4A Power Supply  M. 30Pin GPIO Ribbon Cable  N. CloudShell2 Board  O. 2x 10mm Truss Head  P. 4x 10mm Pan Head  Q. 4x 8mm female hex XU4 spacer  R. 8x 5mm Round Head  S. 12x 10mm Round Head  Note!! ** 3pin Power Cord is sold separately.  ** XU4 and HDDs are not included. ** Do not apply higher than 16Volt.

Specifications Storage - 2 Drive Bays - Supported size : 3.5" SATA HDD Supported RAID Type - Basic(PM) - JBOD - RAID 0 - RAID 1  Appearance - Color: Clear, Smoky Blue - Size (Height x Width x Depth): 140 x 110 x 221.5 mm - Weight: 0.64kg(without HDD) Others - Fan 92 mm x 92 mm (cool and quiet modes) - IR Receiver (remote controller not included) - 2.8" 320x240 TFT LCD - 15V/4A Power Supply (included)   Hardware Block Diagram

CLOUDSHELL 2 BOARD DETAIL

320x240 TFT LCD Display example Performance :  Local storage speed test with two WD 6TB Red NAS HDDs on Kernel 4.9 LTS with USAP driver. Cloudshell 2 is a great choice to build you own DIY high performance Network Storage!
