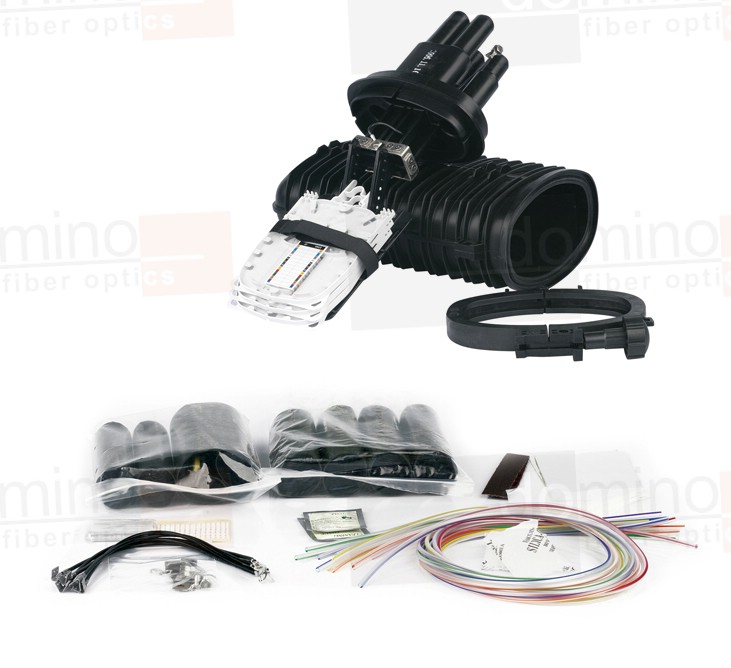

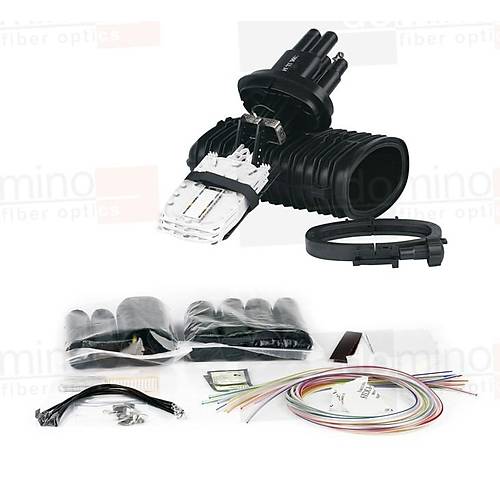

Arazi Tipi Fiber Optik Ek Kutusu

Arazi Tipi Fiber Optik Ek Kutusu Arazi Tipi Fiber Optik Ek Kutusu
Görsel 1
Görsel 2
Fiyat:
36,00 USD + KDV
KDV Dahil:
2.138,40 TL
Havale / EFT:
2.074,25 TL
Aynı Gün Kargo

Ürüne Oy Verin

FEATURES

 Reliable moisture-tight housing with hot melt type sealing.

 Ribbed body structure protects against impact and compression.

 E cient cable splicing with dome type body.

 Compact and lightweight.

 Easy clamping of tension member and grounding.

 Both sheath clamping and waterproo ng can be done simultaneously.

 Simple entry work with bend clamping method.

 Various branching method with 6 inlet ports.

 Two dual cable ports for mid span branch.

 E cient ber management by splicing and storing 12core basis.



SPECIFICATIONS

Size

(l) 522 x (w) 211 x (h) 174 mm

Weight

approx. 2 kg

Cable Port

6 (2 oval)

Cable Diameter

Ø8 ~ Ø24 mm

Cable Type

Loose Tube, ribbon

No. of Splice Trays

6

Splice Tray Capacity

12 cores

Splice Capacity

0-72 cores

Cable Clamp Method

Heat Shrinkable Tube

Supported Central Strength Member

Galvanized steel wire, FRP, wire


Diğer Özellikler
Stok KoduFEK-00001-1
MarkaDomino Electronics
Stok DurumuVar
