      Actobotics Timing Pulley - Shaft Mount (10T; 6mm Bore)
      Actobotics Timing Pulley - Shaft Mount (10T; 6mm Bore)
      Görsel 1
      Görsel 2
      DomiPuan : 71
      Fiyat:
      9,02 USD + KDV
      KDV Dahil:
      83,61 TL
      83.61 www.domirobot.com
      Aynı Gün Kargo

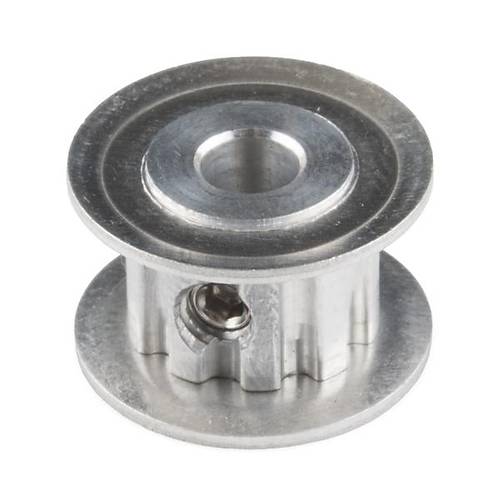

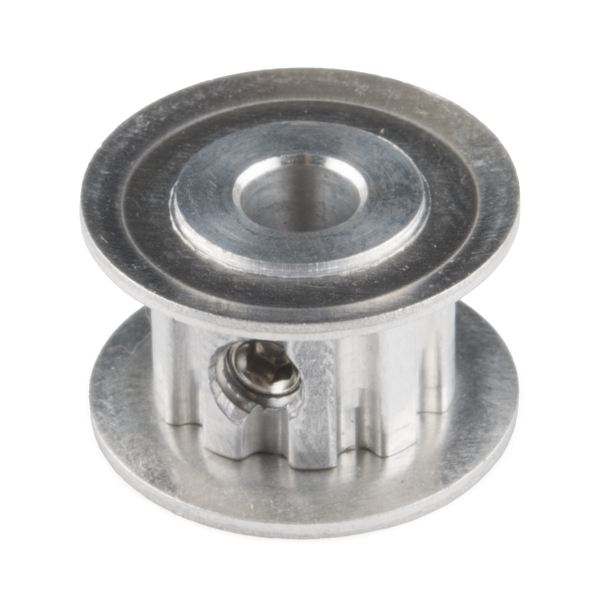

      Description: These shaft-mountable aluminum timing pulleys use XL timing belts and attach to a 6mm output shaft with a set screw. They have 10 teeth with a gear pitch of 1/5P, an outer diameter of 0.6”, a bore of 6mm, and requires a belt width of 3/8”.


      Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

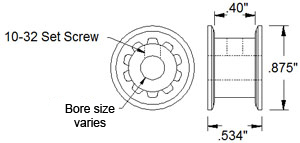

      Dimensions:

      • Teeth - 10T at 1/5P
      • OD - 0.6”
      • Bore - 6mm
      • Belt Width - 3/8”






      Actobotics Hole Pattern Details



      Diğer Özellikler
      Stok KoduSPA-ROB12490
      MarkaActobotics
      Stok DurumuVar
      kutu A-207
