Actobotics Motor Tutucu - C Tip

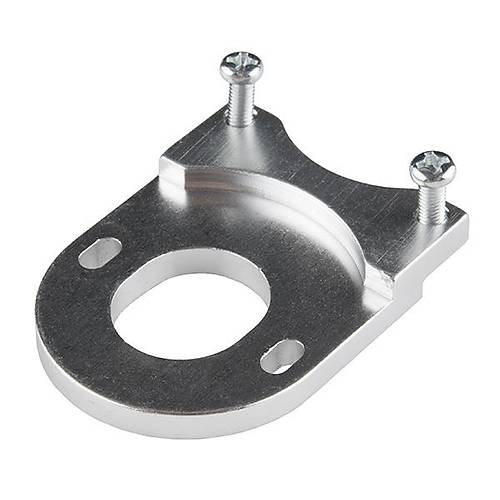

Description: The C Style Motor Mount is a low-profile mount for your standard or precision gear motors. Two screws secure your motor while 2 tapped 6-32 holes allow you to connect to Actobotics channels, or other mounts, hubs, or adapters.These mounts fit flush against channels making them ideal for driving gears or pulleys.


Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

The Aluminum Motor Mount C works with any R/C car motor with 25mm mounting hole spacing.  When attached to Actobotics channel, the center to center distance between the motor shaft and nearest ½? hole is 1.5?. The 1.5? hole spacing makes it possible to run any 32P gear combo that the sum of the teeth is 96 (ie, if you select a 20T 32P pinion gear, it will mesh properly with a 76T 32P hub gear).  The motor mount is constructed of 6061 T6 aluminum for superior strength and durability.  Mount comes with (2) 3mm x 8mm screws to attach motor.



Actobotics Hole Pattern Details
