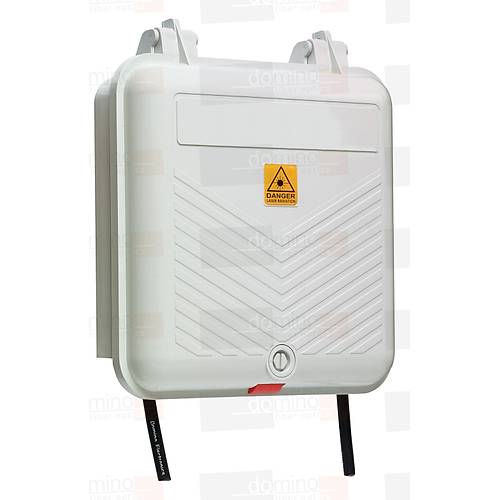

3M Fiber Optik Ek kutusu PBO T1

Indoor / Outdoor FTTH Branching Point


The PBO T1 is designed for use as an indoor / outdoor FTTH branching point.

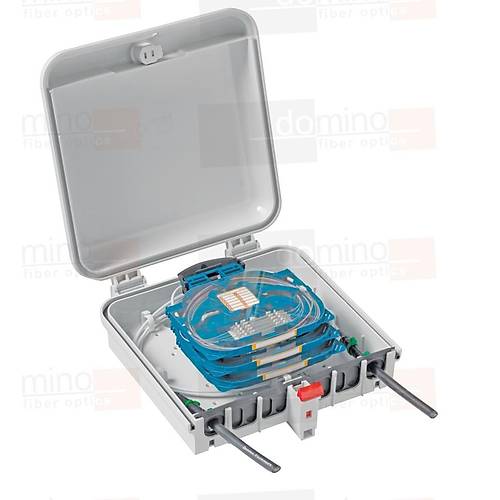

BPEO T1 organiser trays are designed to match the requirements of FTTH Fiber management and splitters. The standard organiser is equipped with three trays each of which can house a splitter.
This box is designed for either outside plant or building distribution.

Can be wall or pole mounted.



SPECIFICATIONS
Connection	Capacity	Information
Fusion Splices	36	12 splices in each splice tray
Mechanical Splices (Fibrlok 2540G)	30	10 splices in each splice tray
Splitters 1 by 8	3	1 splitter and 9 splices in 2 slot tray
Physical Characteristic
Protection Degree (EN 60529)	IP 43 / IK06
Size	(l) 270 x (w) 240 x (d) 80 mm
Colour	Light Grey RAL 7035
Material	Thermoplastic
