SparkFun 10 Segment LED Bar Graph - Kırmızı

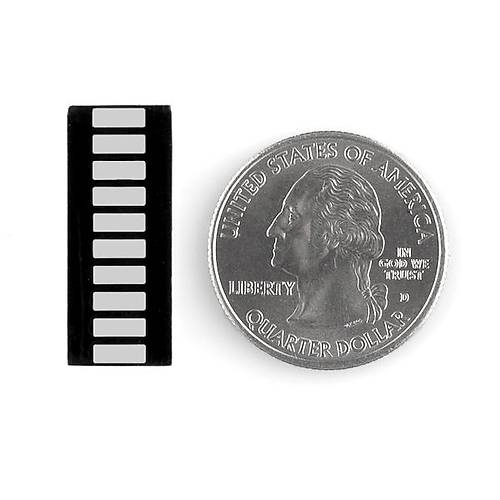

Description: These 10 segment bar graph LEDs have many uses. With a compact footprint, simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual yellow LEDs housed together, each with an individual anode and cathode connection.

We also carry these in yellow, blue, and green.

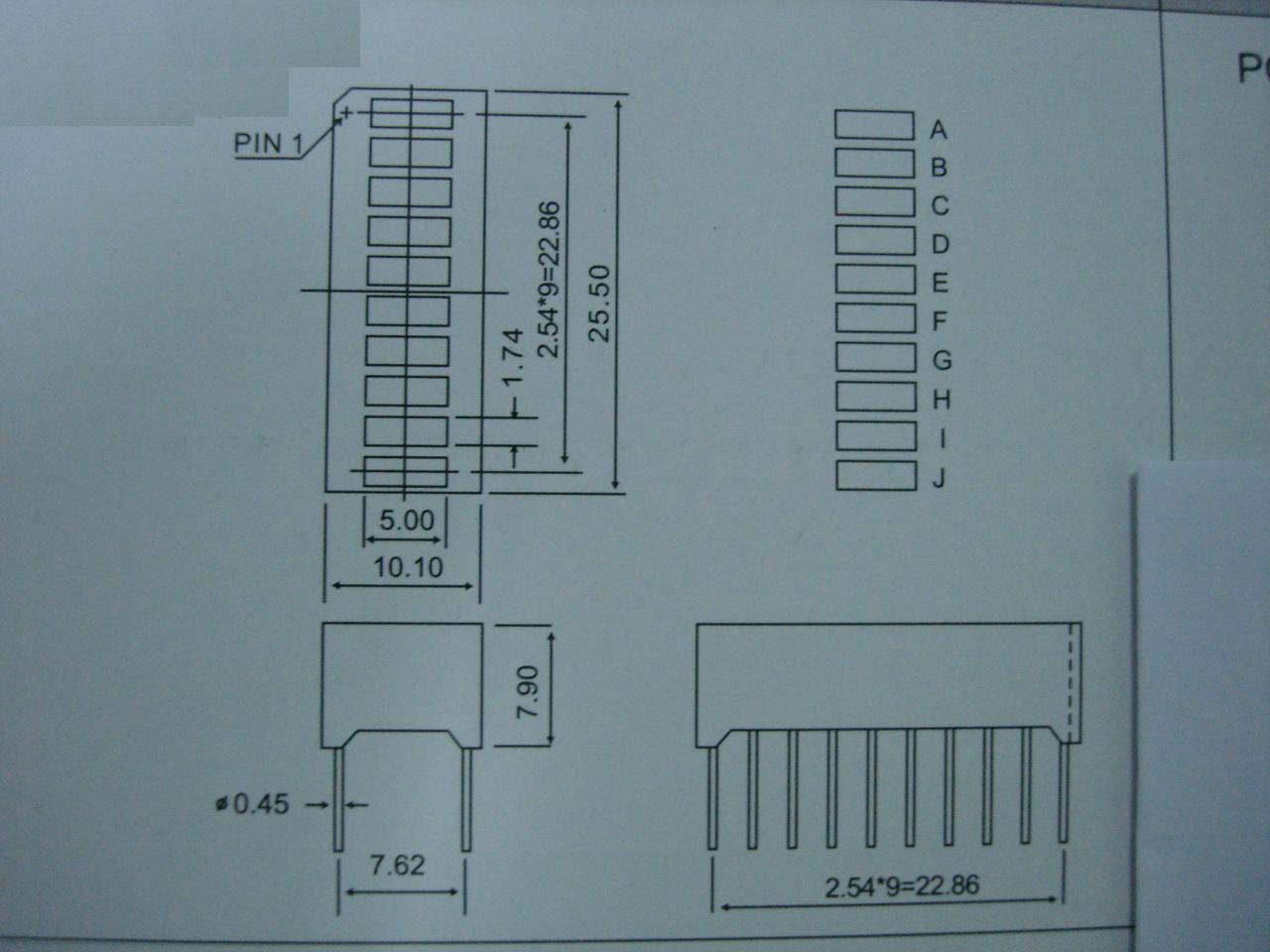

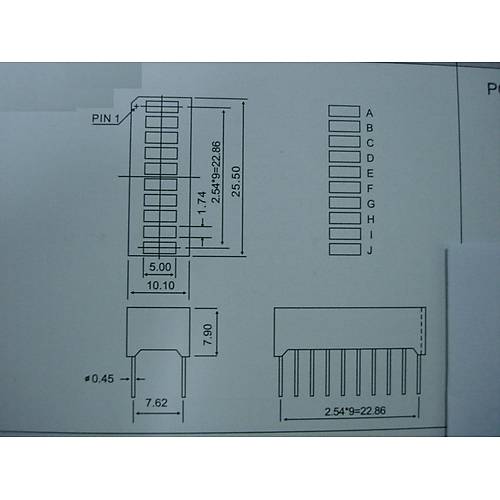

Note: The pinout on these bar graphs may vary from what is listed on the datasheet. Rotating the device 180 degrees will correct the change making pin 11 the first pin in line. We have contacted our supplier to correct this mistake in the future.

Documents:


• Datasheet

• Wiki Doc
• Arduino Sample code
• Arduino Project
