MakeBlock Enkoderli 25mm DC Motor Paketi

Description:

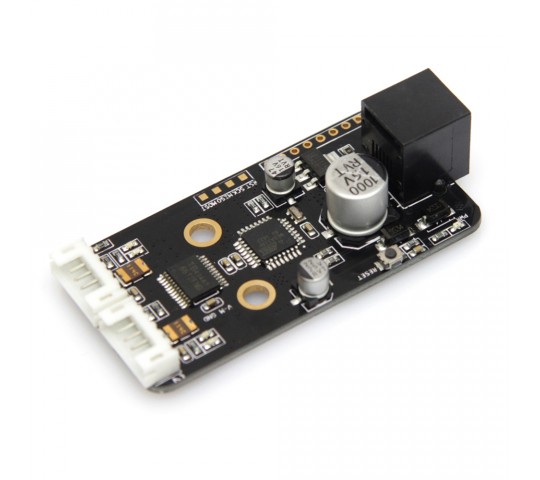

Me Encoder Motor Driver can control up to 2 DC Encoder Motor. Precise speed and position of 2 motors can be set and get separately. The motor driver IC is TB6612, same as Me Dual DC Motor Driver. We provide a software for tuning P-I-D parameters of the driver, so that it could work well in different conditions. The reduction-gear ratio of the motor is about 46. You can also edit the reduction-gear ratio in the software.

Note: It requires some PID tuning experience, and a USB-to-UART module.

Features:

• Precise speed and position controlling.
• Real-time speed and position feedback.
• TB6612PNG motor driver IC with Hight efficient MOSFET-based H-bridges.
• Easy programming with Arduino library.
• 6V to 12V motor supply range.
• 1A maximum continous current per motor.
• Over-current protection.
• Easy wiring with RJ25 interface.
• 2.54mm pins for connecting with dubond lines.

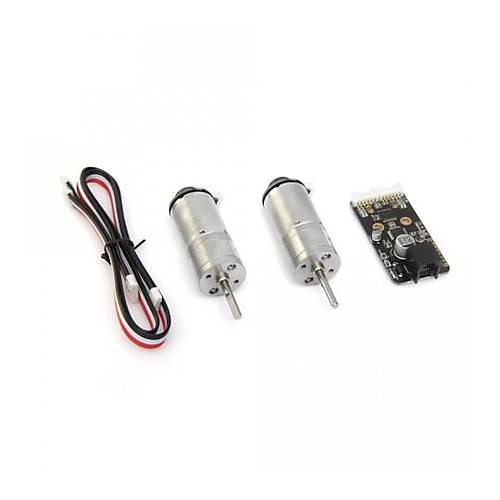

Kit Includes:

1 x Me Encoder Motor Driver

2 x Me Encoder Motor - 25 6V/185RPM

Resources:

Download PID tuning tool.

How to use the tuning tool.

API Documentation.

Download Arduino Library.
