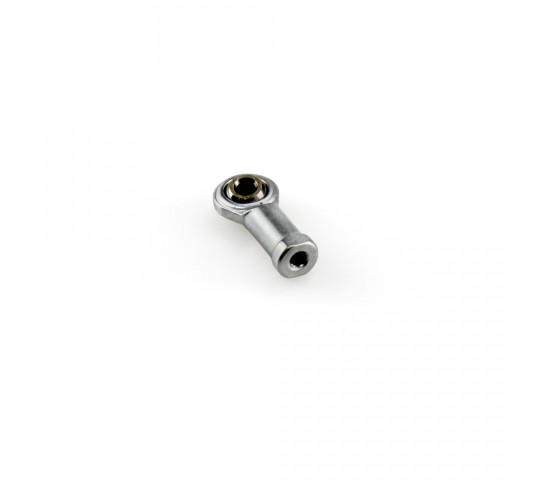

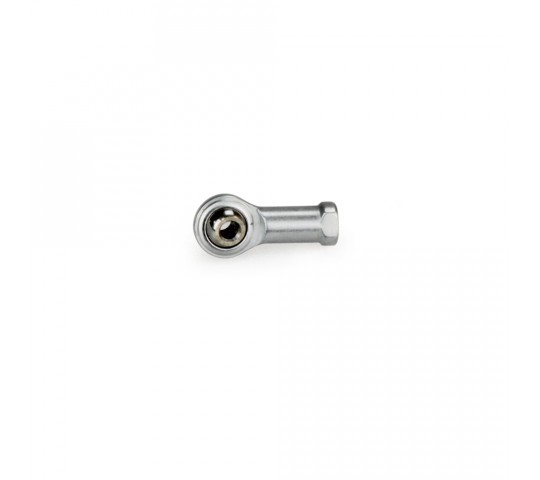

MakeBlock 4mm Dişi Rod Sonlu Rulman (3 Adet)

Direksiyon bağlantıları, kontrol çubukları ve rot başları gibi parçalarda kullanabileceğiniz eklem parçasıdır. M4 vida deliği sayesinde kolaylıkla bağlantı yapılabilir.

Üçlü paket olarak satılmaktadır.

------------------------------------------------------------------------------------------------------------------

Description:
A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached.

Features:

• With a M4 screw hole, compatible with most Makeblock components
• Designed to support high loads, reversing loads, and shock loads. Widely used in engraving machines, automation equipments, CNC equipment.
• Rolling bearing seat material : cast iron
• Rod end joint bearing ball head diameter is 4 mm
• Sold in pack of three

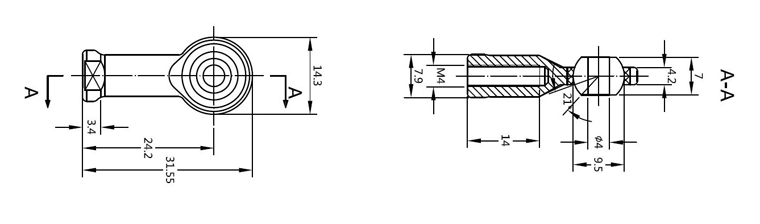

SizheCharts(mm):

Demo:
