2cm - 400cm arasında 3mm hassasiyetle ölçüm yapabilir. Bu sensör değişik uzaklık okuma, radar ve robot uygulamalarında kullanılabilir.
Özellikler:
- Çalışma Voltajı: DC 5V
- Çektiği Akım: 15 mA
- Çalışma Frekansı: 40 Hz
- Maksimum Görme Menzili: 4m
- Minimum Görme Menzili: 2cm
- Görme Açısı: 15°
- Tetik Bacağı Giriş Sinyali: 10 us TTL Darbesi
- Echo Çıkış Sinyali: Giriş TTL sinyali ve Mesafe Oranı
- Boyutları: 45mm x 20mm x 15mm
Örnek Uygulama
------------------------------------------------------------------

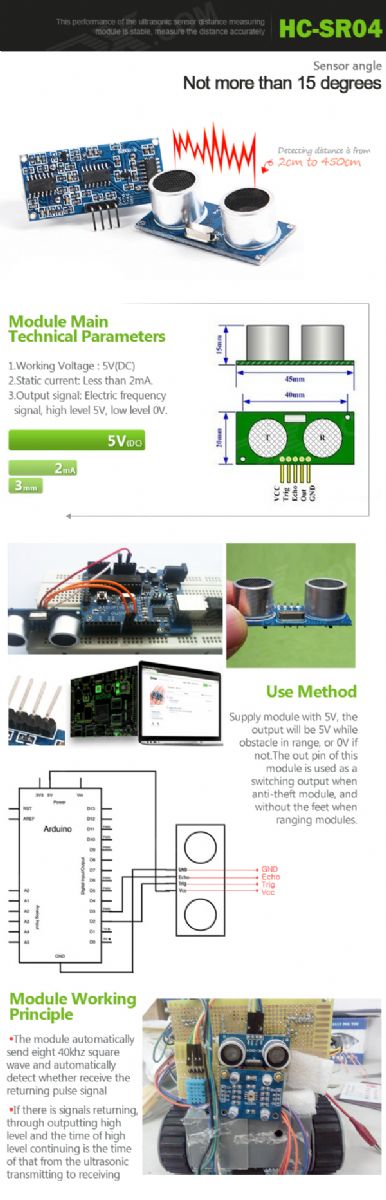

This performance of the ultrasonic sensor distance measuring module is stable, measure the distance accurately. The module is with High precision, blind spots (3cm) super close. This module provides a full set of ranging process.

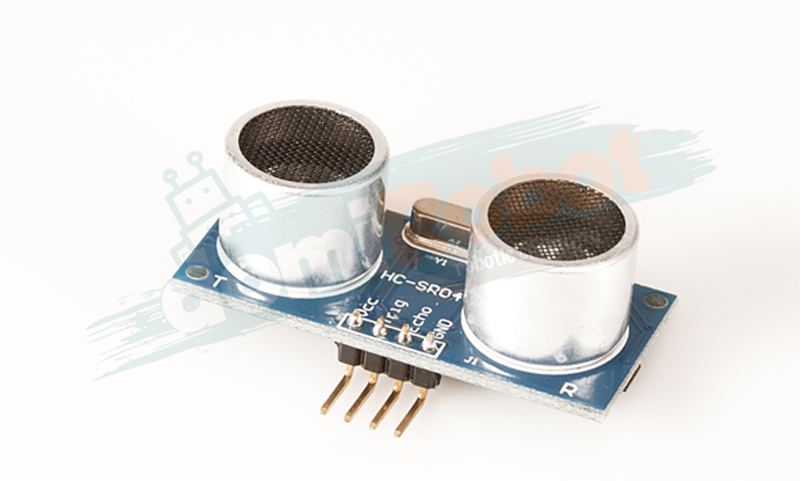

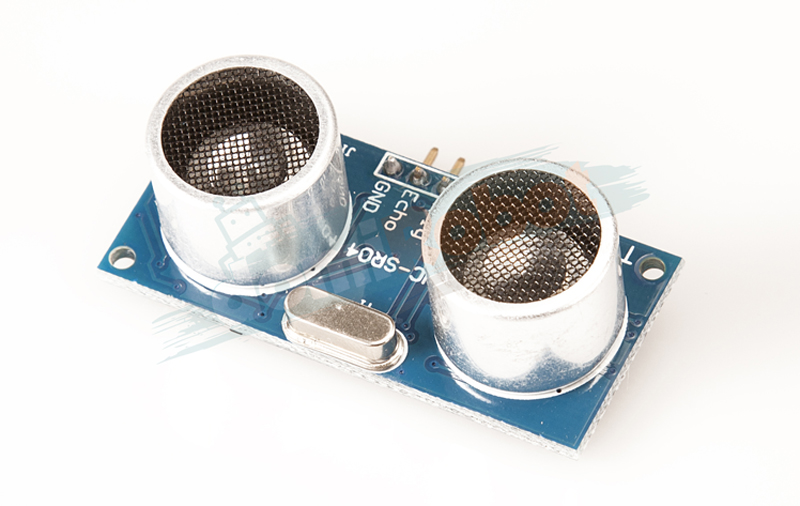

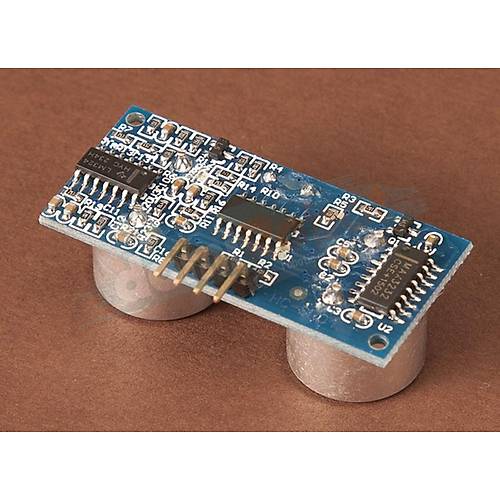

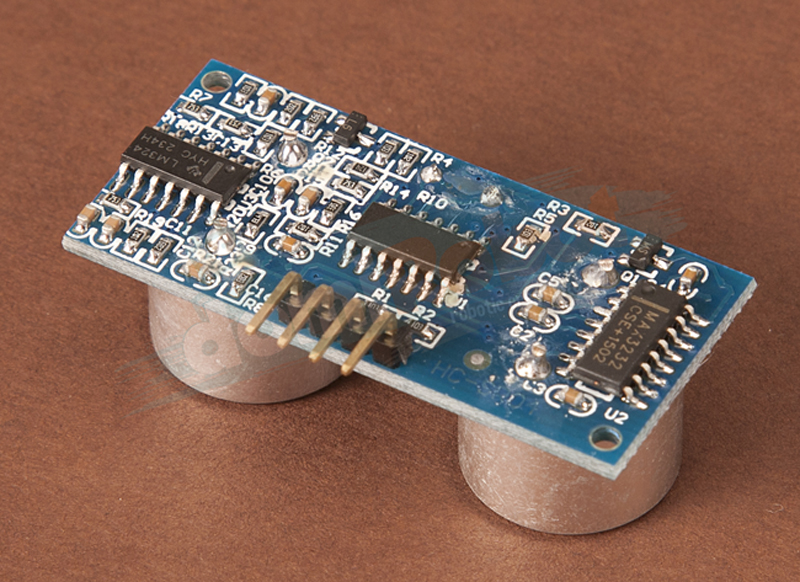

- Model: HC-SR04
- Color: Blue + Silver
- Working voltage : 5V(DC)
- Static current: Less than 2mA.
- Output signal: Electric frequency signal, high level 5V, low level 0V.
- Sensor angle: Not more than 15 degrees.
- Detection distance: 2cm~450cm.
- High precision: Up to 3mm
- Mode of connection: VCC / trig(T) / echo(R) / GND
- Module Working Principle:
- Adopt IO trigger through supplying at least 10us sequence of high level signal
- The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal
- If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving
