      DFRobot Gravity: Analog ORP Sensor Meter For Arduino
      DFRobot Gravity: Analog ORP Sensor Meter For Arduino
      DFRobot Gravity: Analog ORP Sensor Meter For Arduino
      DFRobot Gravity: Analog ORP Sensor Meter For Arduino
      DFRobot Gravity: Analog ORP Sensor Meter For Arduino
      Görsel 1
      Görsel 2
      Görsel 3
      Görsel 4
      Görsel 5
      DomiPuan : 930
      Fiyat:
      119,78 USD + KDV
      KDV Dahil:
      1.097,47 TL
      1097.47 www.domirobot.com
      132,78 TL'den başlayan taksit seçenekleri için tıklayın.
      Aynı Gün Kargo


      Geleneksel ORP sayaçlarını elde etmek veya kullanmak zor olsa da, bu Analog ORP Sayaç, Arduino'nuza uyan oldukça kompakt bir ORP izleme sistemidir. Bu tasarım yapılandırması, kullanıcının tasarımınıza herhangi bir ek devre veya bileşen eklemek zorunda kalmadan ORP'yi doğru bir şekilde izlemesini sağlar. Analog ORP Metre ile iletişim sadece basit kablolama ve programlama kullanılarak yapılır.


      --------------------------------------------------------------



      INTRODUCTION





      In the ever-increasing need and awareness for health and safety, water has become a focus point for proper disinfection treatment as aftereffects of industrialization can become a danger for contamination of water via direct contact. Water is a critical control point of contact where proper treatment can greatly reduce these microbes, thereby reducing the chances of illness and pollution.

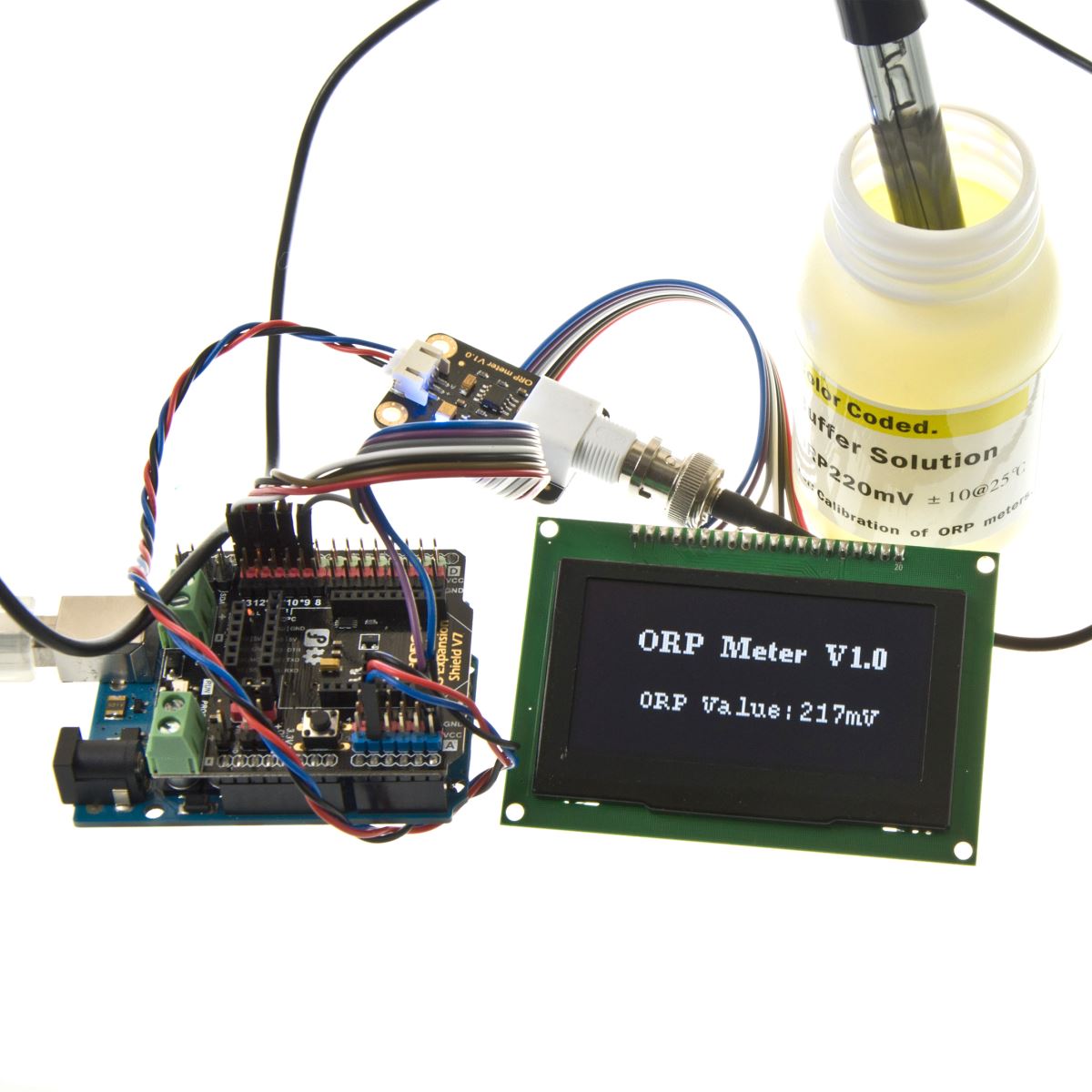

      While traditional ORP meters are hard to get or use, this Analog ORP Meter is a highly compact ORP monitoring system that fits into your Arduino. This design configuration allows the user to accurately monitor ORP without having to add any additional circuitry or components to your design. Communication with the Analog ORP Meter is done using only simple wiring and programing.

      ORP (Oxidation-Reduction Potential) is a measure of the ability of oxidation and reduction of aqueous solution, characterization of oxidizing or reducing the relative degree. Unlike a pH measurement that follows a logarithmic curve and therefore requires more calibration adjustments, ORP follows a linear relationship and does not need instrument adjustment as much as it needs electrode maintenance. ORP has proven to be a reliable method of measuring water quality and provides the operator with a single value of measurement regardless of which product, commodity, operation, treatment or sanitizer is used, and regardless of varying field conditions or method by which chemical is applied.





      APPLICATIONS





      • Water Quality Testing
      • Aquaculture
      • Marine Science
      • Hydroponic Gardening
      • General Chemistry






      SPECIFICATION





      • Module Power:+5.00V
      • Module Size: 40mmX27mm(1.57"x1.06")
      • Measuring Range:-2000mV—2000mV
      • Suitable Temperature:5-70℃
      • Accuracy:±10mv (25 ℃)
      • Response Time:≤20sec

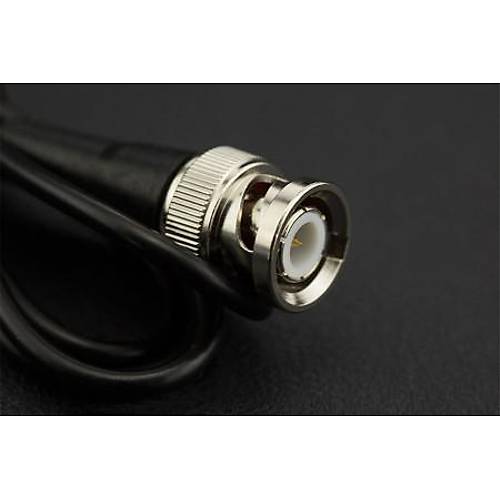

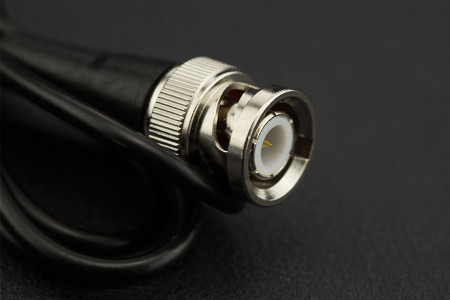

      • ORP Probe with BNC Connector
      • PH2.0 Interface(3 foot patch)
      • Zero calibration button
      • Power Indicator LED






      DOCUMENTS









      SHIPPING LIST

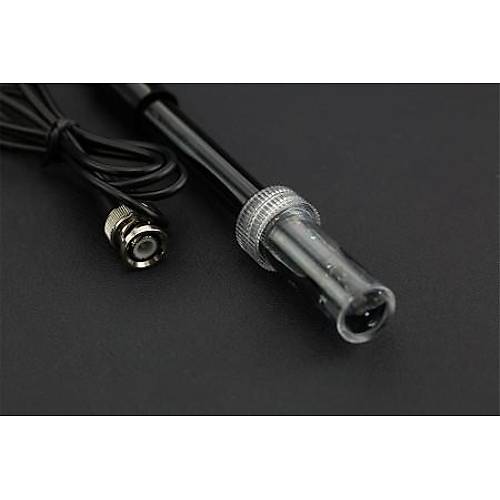

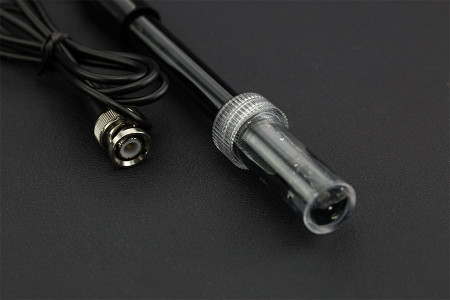

      • ORP probe (BNC connector) x1

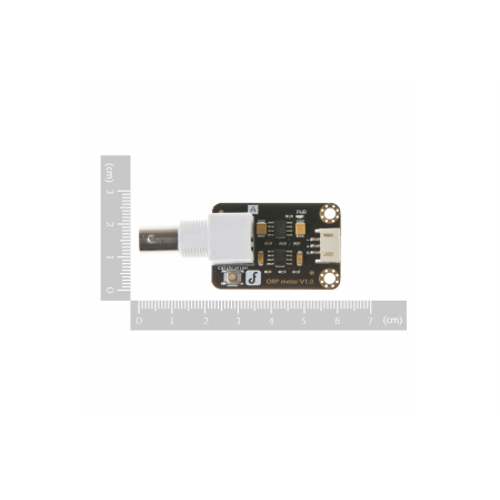

      • ORP probe circuit board x1
      • Analog cable x1
      Diğer Özellikler
      Stok KoduDFR-SEN0165
      MarkaDFRobot
      Stok DurumuVar
