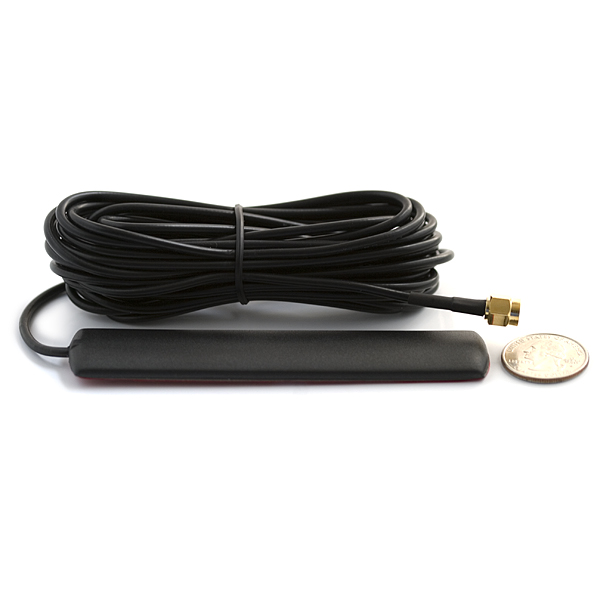

Description: A Quad-band antenna for embedded cellular devices. This antenna will allow you to connect your cellular module to the outside world. Operates on four frequencies. Comes with a 3M adhesive backing for mounting. Standard male SMA terminated.
Key Specifications:
Quad-band: 850/900/1800/1900MHz and 2.4GHz
For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex
Cable with RG174A/U - 3m long
Connector: SMA
Electrical Properties:
Frequency range: 824 ~ 960 MHz // 1710 ~ 1990 MHz
Impedance: 50 Ohm nominal
VSWR: <2.0 : 1
Gain: 3.5dBi
Radiation: Omni
Polarization: Vertical
Wave: Half Wave Dipole
Mechanical Properties:
Size: 115x22x4mm
Connector SMA (Male) standard
Cable: RG174
Cable length: 3m
Over-mold housing: ABS Black
Mounting: Adhesive backing
Operation Temperature: -40 to +85C
